New X7.6 series: efficiency at its very best

The new X7.6 series has been designed to meet the most demanding needs of modern farmers and contractors. Inspired by the automotive design, the new X7.6 tractor features more aggressive lines and a spacious cab with simple, ergonomically arranged controls for easy and convenient operation. The cab roof has been fully restyled and the 12 work lights have been repositioned to provide full all-round visibility for night-time operation. The hood has also been redesigned with a more streamlined, aggressive look that enhances visibility to the front.

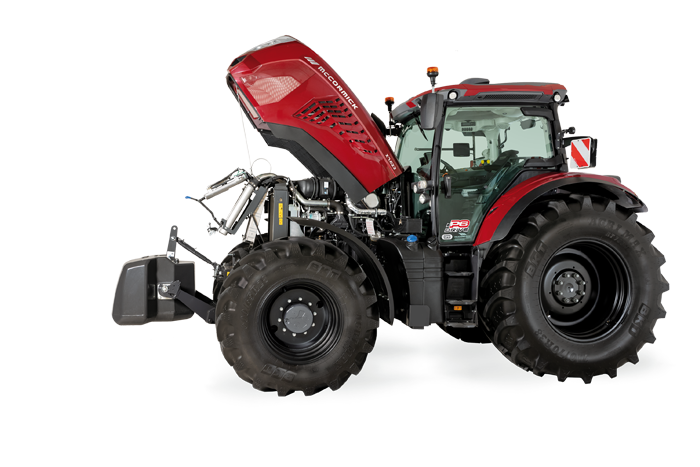

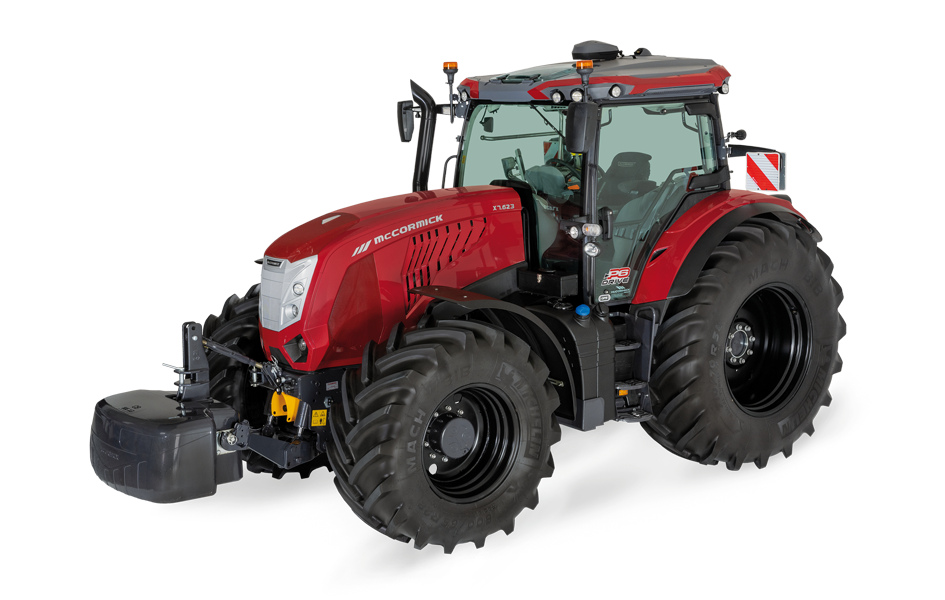

McCormick X7.6 P6 Tractor

Traction, manoeuvrability and comfort on all terrains

Engine Power Transmission
6,7/ 6 190 210 225 P6 Drive

With the engine located within a chassis and the rugged front axle with independent wheels, the X7.6 is the tractor that transfers more power to the ground in its class. The X7.6 offers outstanding traction and excellent manoeuvrability ensuring optimum grip and stability for superior driving comfort in the field and on the road. The front axle is equipped with full hydraulic locking differential and electro hydraulic four-wheel drive engagement ensuring maximum efficiency and safety on all terrains. High capacity wet multi-disc rear axle brakes ensure safe controlled stopping power. Also when braking, the fourwheel drive engages automatically, which in turn brakes the front axle for efficient braking on all four wheels. All X7.6 tractors are equipped with brake power boosting system to reduce the effort required by the operator while improving driving accuracy.

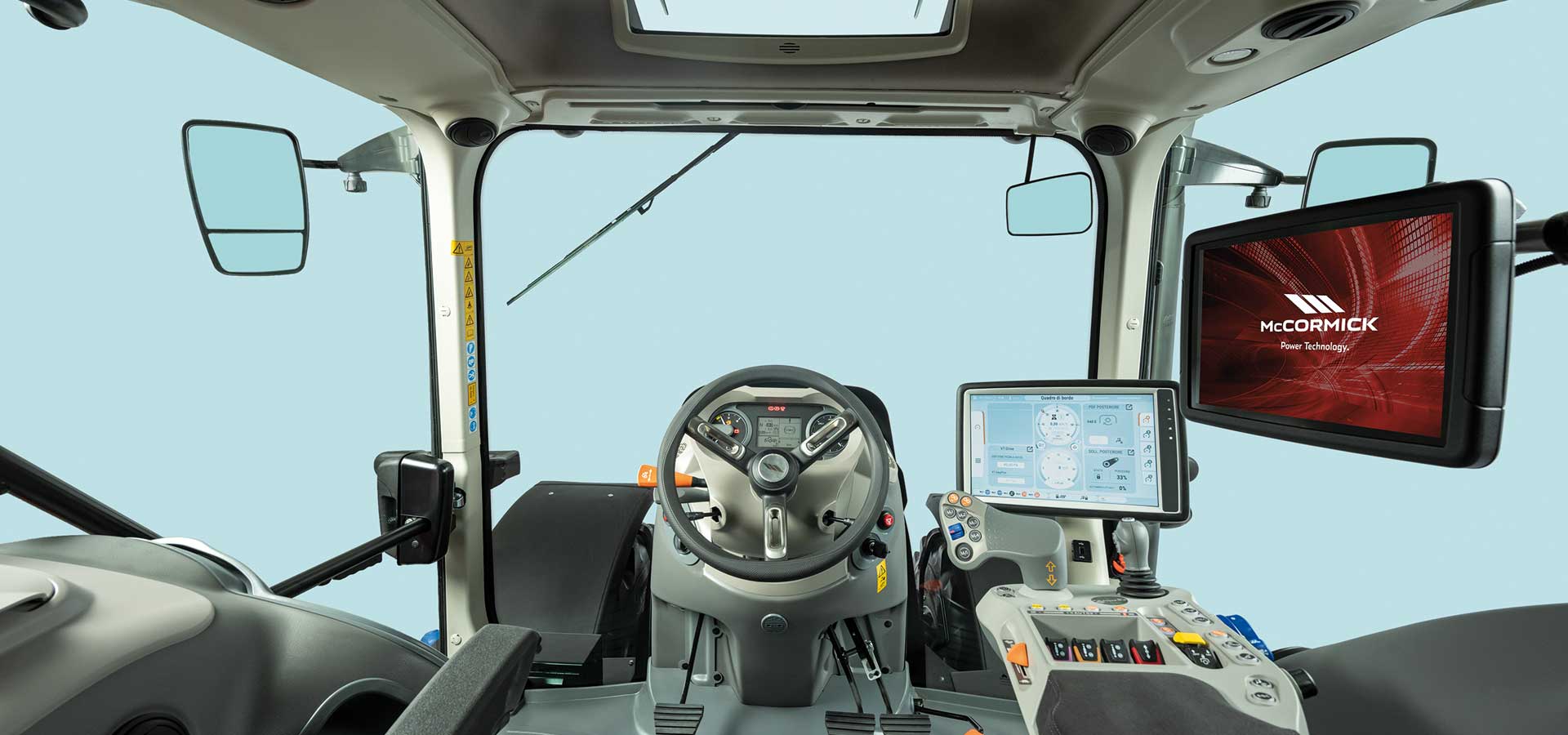

Premiere Cab: your new office in first class

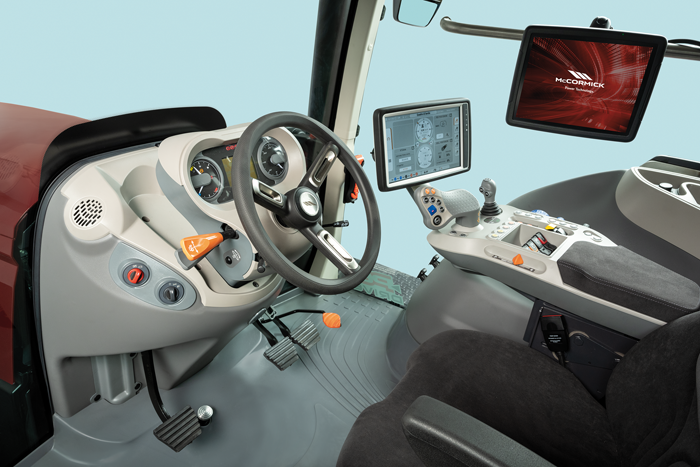

The Premiere Cab is a new-concept four-post design with rear hinged doors that provides unobstructed visibility in all directions giving the driver full view of blind spots without the need to change position. The cab is pressurized to keep a clean, dust-free environment. A highly-efficient sound insulation system maintains an in-cab noise level of only 70 dB for maximum comfort of operation. The optional electrohydraulic semi-active cab suspension system further enhances the operator comfort. Wide, well-spaced access steps allow the operator to easily get in and out of the cab, while the buddy seat neatly folds away making for easier and safer access. The cab interior features an automotive-style fit and finish with easy-clean soft-touch materials. The instrument panel and the steering wheel can be electrically adjusted in tilt and depth to suit the driver’s needs. The alcantara swivel seat with dynamic air suspension system and fully automatic height adjustment features both heating and ventilation for ultimate driving comfort. The multifunction righthand armrest accommodates the main tractor controls arranged in a simple and logical manner. The ergonomically-designed multifunction controller provides easy and intuitive control of key tractor functions. Integrated into the armrest is a DSM 12-inch touch screen monitor with simple tablet-like graphics that allows the operator to quickly manage and adjust the tractor operating parameters. The new Premier Cab also offers additional new functions, such as front and rear view cameras and the MyHMF intuitive menu for automatic management of headland operations. The Premiere Cab’s standard equipment includes a refrigerated in-cab storage compartment and bottle holder, 12V sockets for charging mobile devices, an internal mirror and an opening transparent roof hatch providing extra visibility for loader operations. Integrated into the cab roof, a highly efficient automatic climate control maintains the desired cab temperature whatever the outdoor weather conditions.

New Beta Power Fuel Efficiency: plenty of pulling power in the field

The X7.6 tractor range is powered by the new Beta Power Fuel Efficiency 6.7L six-cylinder turbo engines with multivalve technology and electronic common rail injection system. The engines are located within a rugged chassis which helps reduce noise and vibration levels within the cab. The engine cooling is ensured by an electronically-controlled viscotronic fan, which is standard on the entire range. This solution improves cooling efficiency while reducing fuel consumption and noise levels. The new Beta Power Fuel Efficiency powering the X7.6 series are cuttingedge engines designed to offer farmers simplicity and functionality without compromising on performance, reliability and durability. They feature the Power Plus system which electronically adjusts the engine power to respond to varying load conditions. During transport applications or PTO operations, the Power Plus automatically delivers additional 10 hp to handle tough conditions and heavy loads while maintaining speed and productivity. With the Power Plus the X7.6 tractors will deliver maximum powers of 190, 210 and 225 hp.

 X7.620 P6-Drive X7.621 P6-Drive X7.623 P6-Drive
MANUFACTURER – BRAND FPT FPT FPT
RATED POWER WITH EPM (ISO/TR 14396) HP/kW 175/129 194/143 205/151
MAX. POWER WITH EPM (ISO/TR 14396)   HP/kW 190/140 210/155 255/166
MAX. TORQUE WITHOUT EPM (WITH EPM) 1400 rpm 756 (778) 840 (860) 904 (921)
TORQUE BACKUP WITHOUT EPM (WITH EPM) 36%(41%) 36%(41%) 36%(41%)
NO. OF CYLINDERS / DISPLACEMENT/ VALVES 6 / 6,7l / 24 6 / 6,7l / 24 6 / 6,7l / 24
ADBLUE / DEF tank L 52 52 52
FUEL TANK  L 320 320 320

P6 Drive transmission: the right speed for every application

The P6-Drive transmission with five ranges and six-speed on-the-go powershift incorporates a robotized range shifting and an electrohydraulic steering-column power shuttle providing 30 forward and 15 reverse speeds. In addition, a creep speed option provides 54 speeds forward and 27 in reverse. Where legally permitted, a top speed of 50 km/h can be reached. The P6-Drive transmission is also equipped with an Oil Cut-off function enabling more efficient management of the braking system for better on-road performance and improved fuel economy.

Multi-function controller

An ergonomically-designed controller integrated into the multifunction armrest provides easy and intuitive control of the P6-Drive transmission, allowing the operator to shift through all gears and ranges without depressing the clutch pedal. The powershift button enables seamless speed progression both in the field and on the road. The multifunction controller integrates all main functions for tractor and implement operation. The MyFunctions pushbuttons allow the operator to select and activate up to five different functions such as the APS Auto Powershift facility, differential lock, 4WD operation, De-clutch button, rear hitch fast raise/lower, speed cruise control, one remote valve and headland management. All functions are clearly displayed on the digital instrument panel and on the DSM touch screen monitor. On the X7.6 tractors with P6-Drive transmission, the cab is available in two versions:

– Premium, with controls on the multifunction armrest;

– Efficient, with controls on the right-hand console which also integrates the multi-function controller.

Smart APS Auto Powershift automatic transmission

On the X7.6 range, the P6-Drive transmission can be controlled both manually and automatically. Based on load conditions, engine speed and rpm, the Auto Powershift (APS) facility automatically selects the right gear in each range. This improves tractor performance and driving safety while optimizing fuel economy.

Stop & Action system

The Stop & Action system integrates the De-clutch function into the brake pedal. This allows the operator to stop the tractor without depressing the clutch pedal and without using the power shuttle. By the combined use of the Stop & Action and APS systems, the P6-Drive transmission ensures a smooth driving, comparable to that of a CVT transmission.

The X7.6 knows how to pump up your productivity

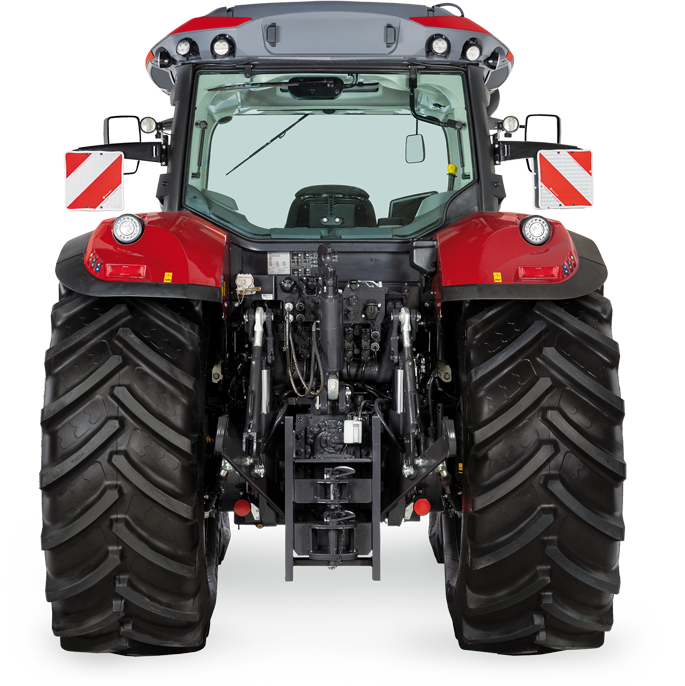

The X7.6 series tractors feature a closed-centre hydraulic system with variable-displacement pump. This means that the pump always delivers exactly the quantity of oil that the system requires, thereby eliminating unnecessary power waste. The system supplies up to 160 l/min to the hitch and remote valves, allowing for simultaneous operation of all hydraulic functions. The hydraulic system also includes a steering pump with 44 l/min flow rate. The X7.6 range has been designed to operate in a variety of conditions with heavy, power-demanding implements. The PTO offers four speeds: 1000, 1000Eco, 540 and 540Eco rpm and the driveline design ensures minimal power loss and therefore maximum productivity. An electro hydraulically operated clutch enables smooth and modulated engagement of the PTO, ensuring a soft start-up of the implement. The X7.6 series tractors are equipped with the Power Plus system, which automatically increases power available when the PTO is operational. This enables the engine to maintain a constant power as the load varies, allowing optimum use of the PTO for enhanced tractor performance and productivity. The rear hitch is equipped with lower link draft sensing for accurate implement control and provides a maximum lift capacity of 9300 kg.

Dimensions & Weights

 X7.620 P6-Drive X7.621 P6-Drive X7.623 P6-Drive
Wheelbase mm 2820 2820 2820
Shipping weight – measured with average specs Kg 8000 8000 8000
Gross vehicle weight Kg 13000 13000 13000
