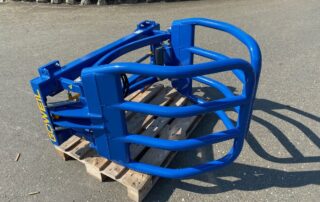

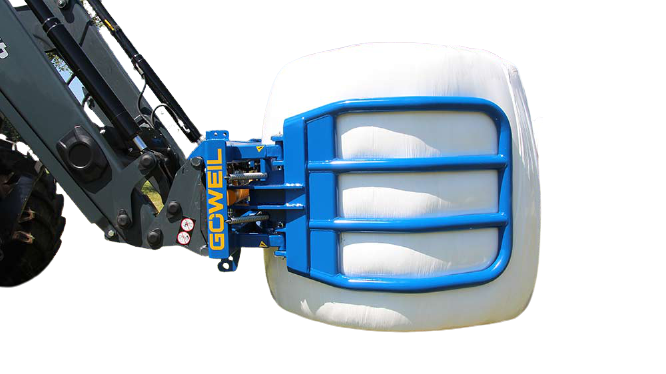

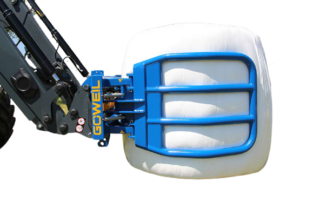

The RBG round bale grabber makes it a snap to load and stack round bales of any type (silage, hay, straw) with diameters ranging from 1.10 to 1.60 m. Thanks to its round design, the grabber is capable of holding the bale securely and handling it in a gentle manner. Since the pressure on the bale is distributed evenly, the film cannot be overstretched or become damaged. Another crucial characteristic of this round bale grabber is the unit’s short and slender design which keeps the center of gravity close to the loader. The round bale grab is available in two versions: RBG 160 – bale diameter of 1.10 – 1.60 m RBG 140 – bale diameter of 0.80 – 1.40 m
Required connections
Double-acting hydraulic control device
Possible attachments
Euro-attachment
Cat. I and Cat. II three-point linkage
Hauer B, Merlo, Dieci Dedalus, Weidemann hydr., Kramer,
Schäffer small, Avant, Faucheux, Giant
Merlo ZM3, SMS, MX, Dieci/New Holland, JCB Compact Tool
Carrier, Schäffer big, Claas Scorpion, Zettelmeyer 402,
Zettelmeyer 602, Liebherr L514, Faresin, CAT TH 407 C,
Skid Steer
Adapter Weiste triangle Cat. II
Requires three-point linkage
Manitou, JCB Q-Fit, Atlas, Volvo BM, CAT 907H / Liebherr
L507, Fendt Cargo T955/Sennebogen
Amkodor, Bobcat
RBG 160
RBG 140
Length:
1,260 mm (4′ 2″)
1,130 mm (3′ 8″)
Width:
1,360 mm (4′ 5″)
1,360 mm (4′ 5″)
Height:
800 mm (2′ 7″)
800 mm (2′ 7″)
Weight:
202 kg (450 lbs)
199 kg (440 lbs)
Bale weight:
max. 1,500 kg (max. 3,300 lbs)
max. 1,500 kg (max. 3,300 lbs)
Max. operating pressure:
200 bar
200 bar
Bale diameters:
0,80 – 1,40 m
0.80 – 1.40 m
