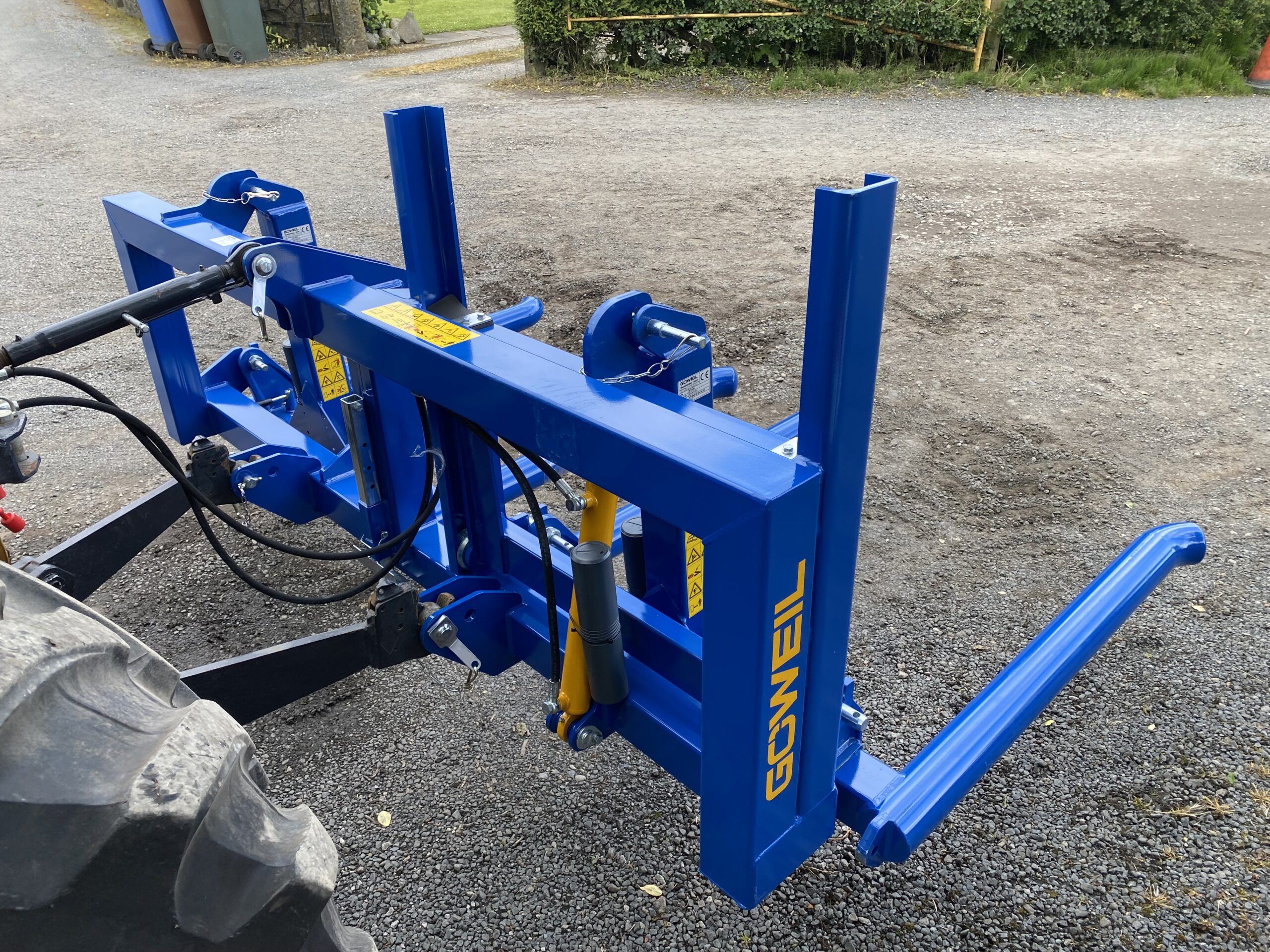

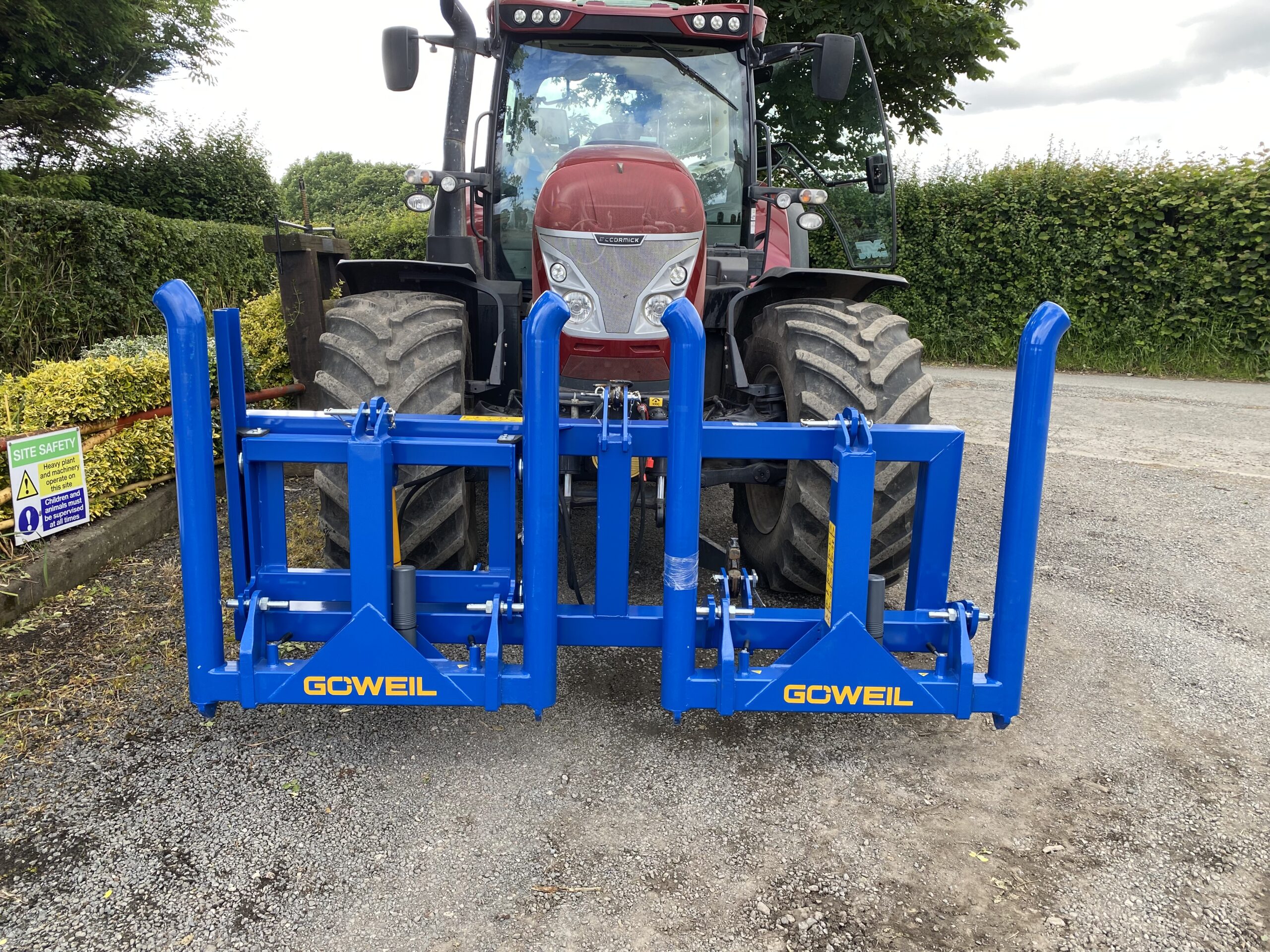

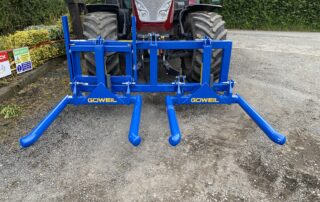

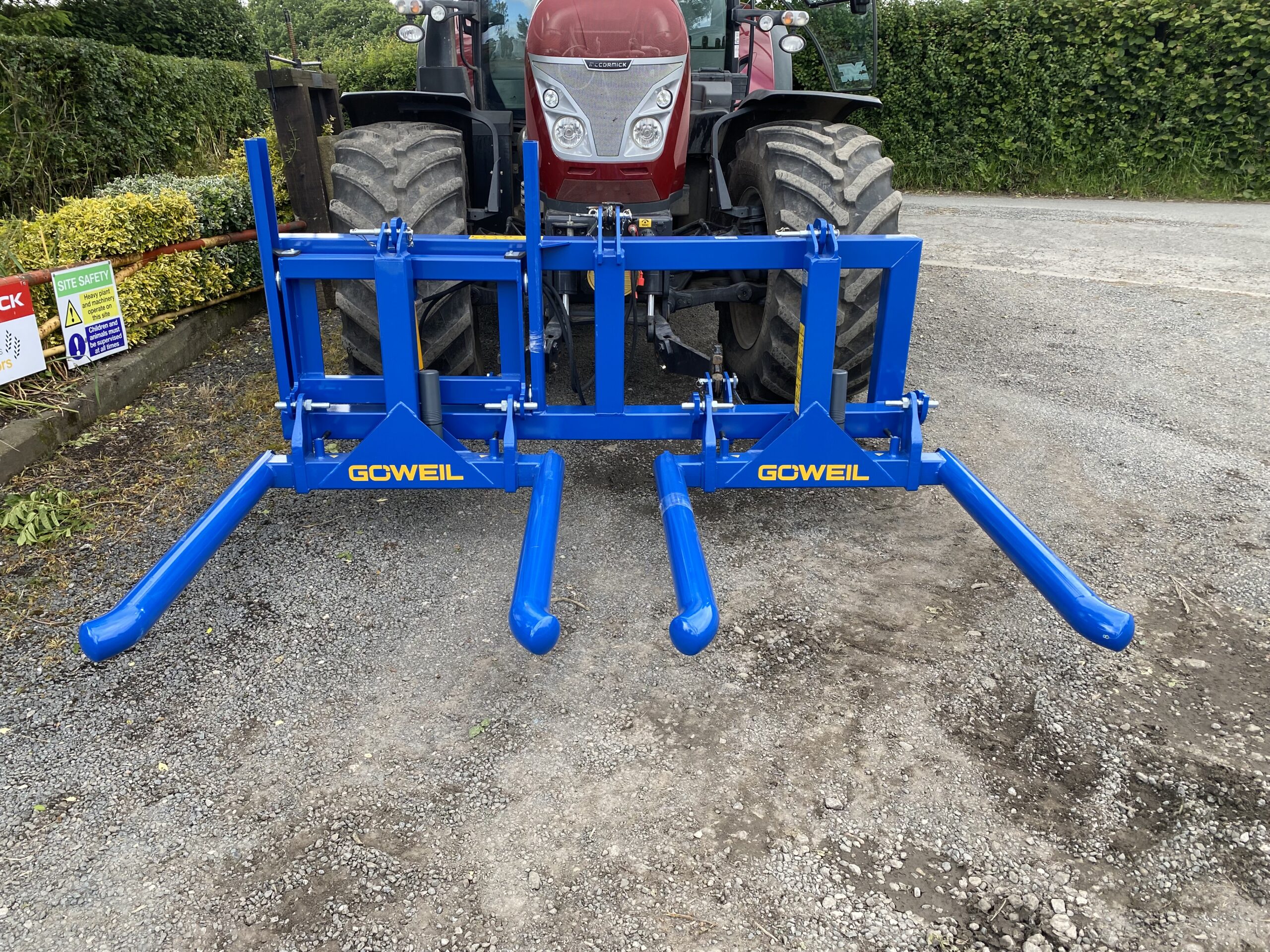

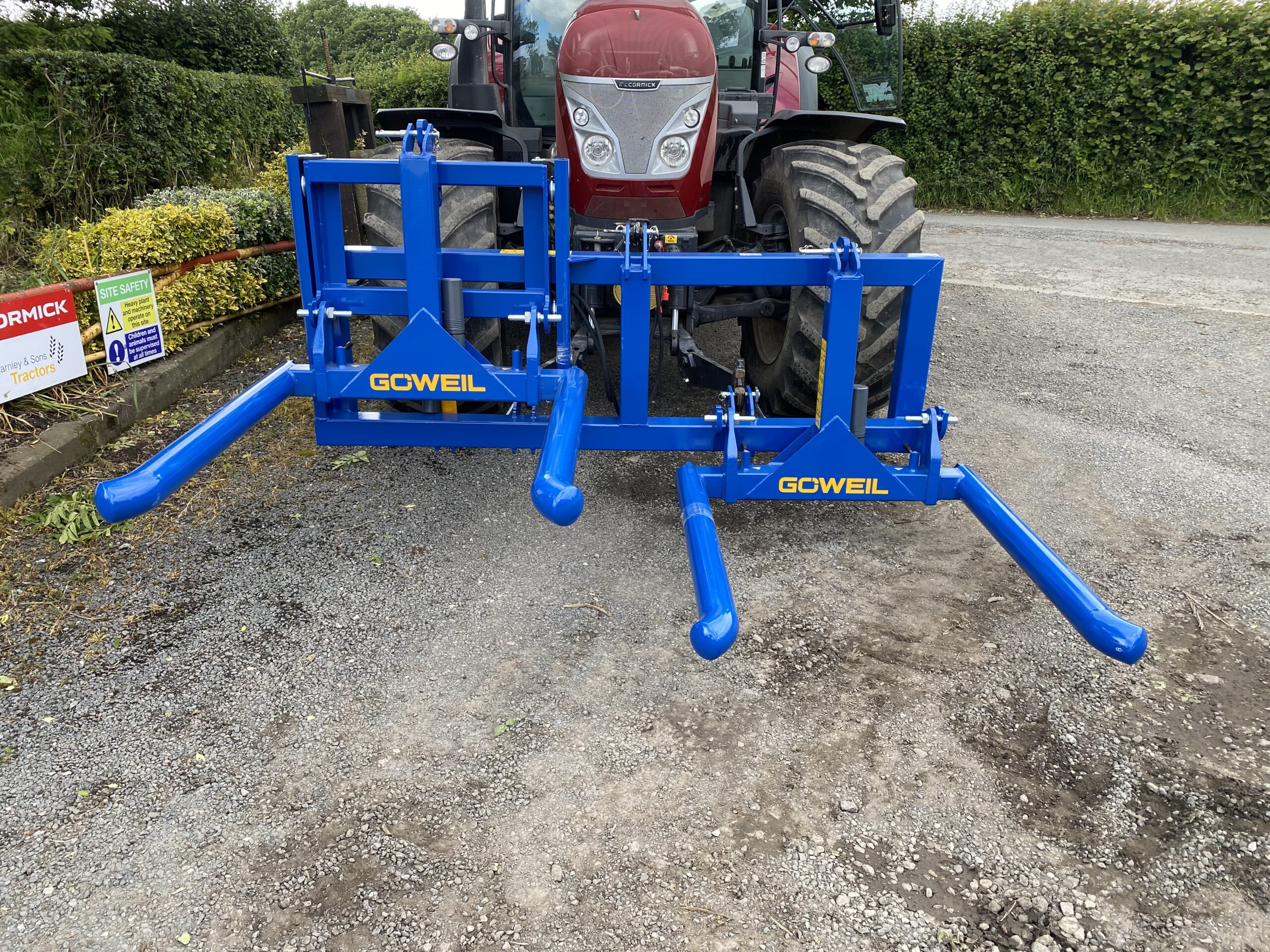

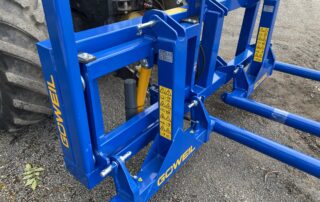

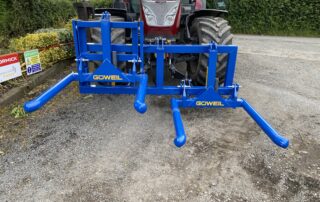

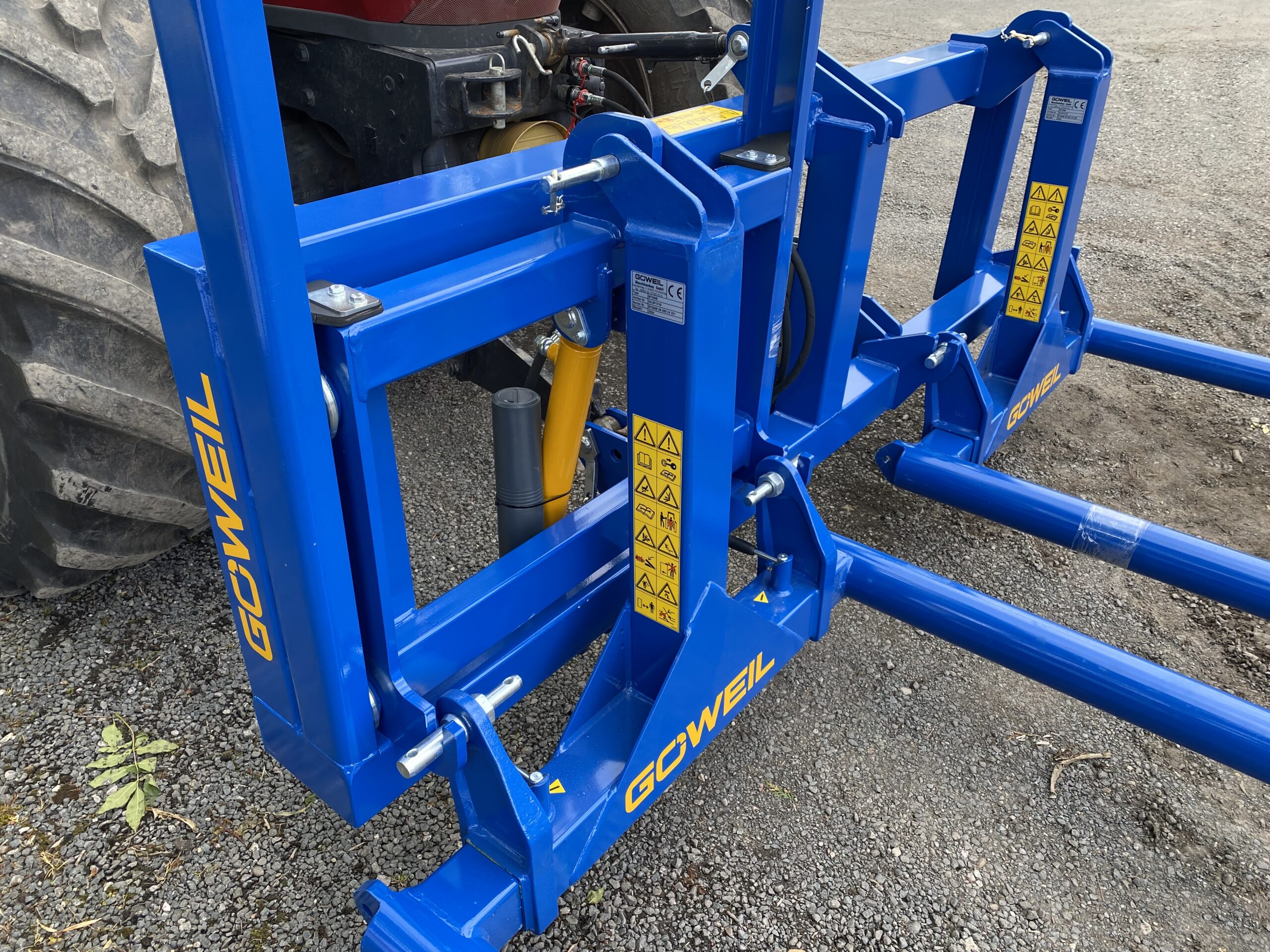

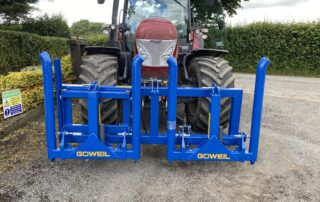

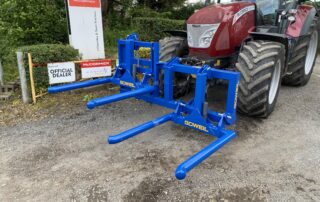

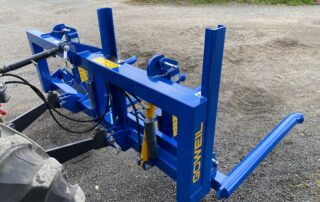

The design of the double transport frame allows for mounting two BTGME or BTGHA round bale transport forks to the transport frame with a few easy steps. While installed stationary on one side, the double round bale spear for two wrapped bales is mounted on a transport cart on the other side, which can be moved up and down hydraulically. The machine is able to simultaneously transport two round bales with a diameter of up to 1.60 m.
Technical data (basic model)
Length:
450 mm (1′ 3″)
Width:
2.440 mm (8′)
Height:
1.130 mm (3′ 5″)
Weight (without transport fork):
218 kg (480 lbs)
Payload:
max. 3,000 kg (max. 6,600 lbs)
Max. operating pressure:
200 bar
Bale diameters:
max. 1.60 m (63”)
