The McCormick X3F range
The X3 F Series is the range of specialised tractors for vineyards and orchards now powered by Stage V. The winning features of the new X3 F Series are its compact dimensions: wheelbase 1,950 mm; minimum ground clearance 213 mm; external width from 1,350 mm to 1,617 mm; minimum height of the steering wheel from the ground on the platform version 1,256 mm and weight without ballast 2,200 kg, making it the ideal range for use in vineyards/orchards, greenhouses and for vegetables.
Compact size and reduced ground clearance
Engine | Power | Transmission |
---|---|---|
2,5/ 4 | 55, 68, 75 | Speed Four, Creeper, Synchro Shuttle |
The X3 F was designed to be easy to handle and use. But what makes the Series truly stand out is its versatility. In fact, the range can be used for a wide array of operations with all kinds of accessories, even front-mounted, thanks to the possibility of equipping the machine with a front lift with a maximum capacity of 1,000 kg. The geometry of the under-cab frame is specifically designed for ventral installation. Applications:
Orchards: The X3 F was created for specialised crops starting from orchards, where it moves with agility among the rows with a span of 2.2 to 2.5 metres.

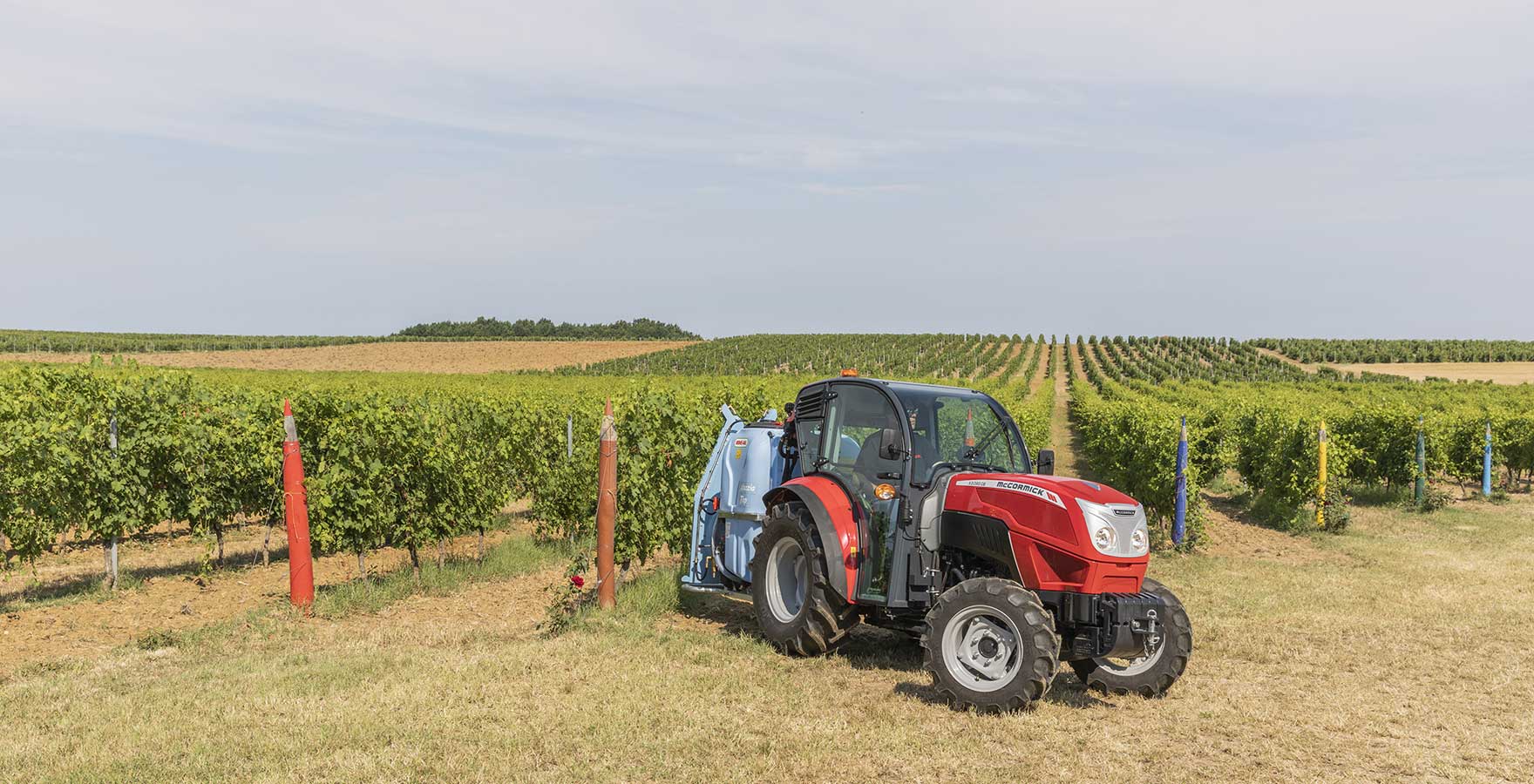

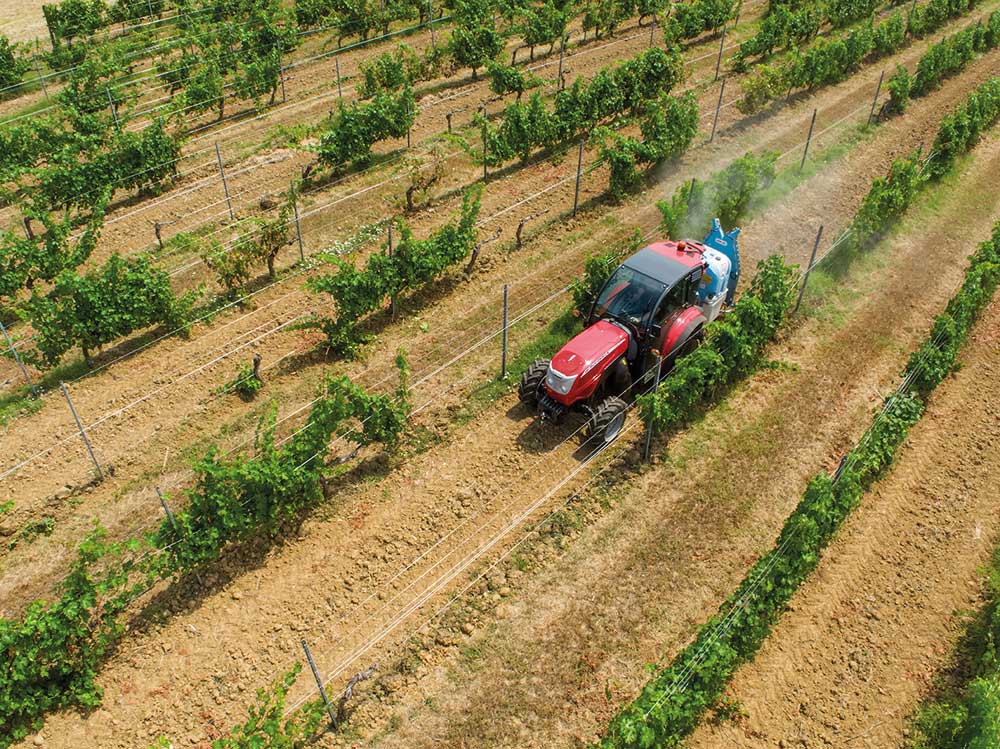

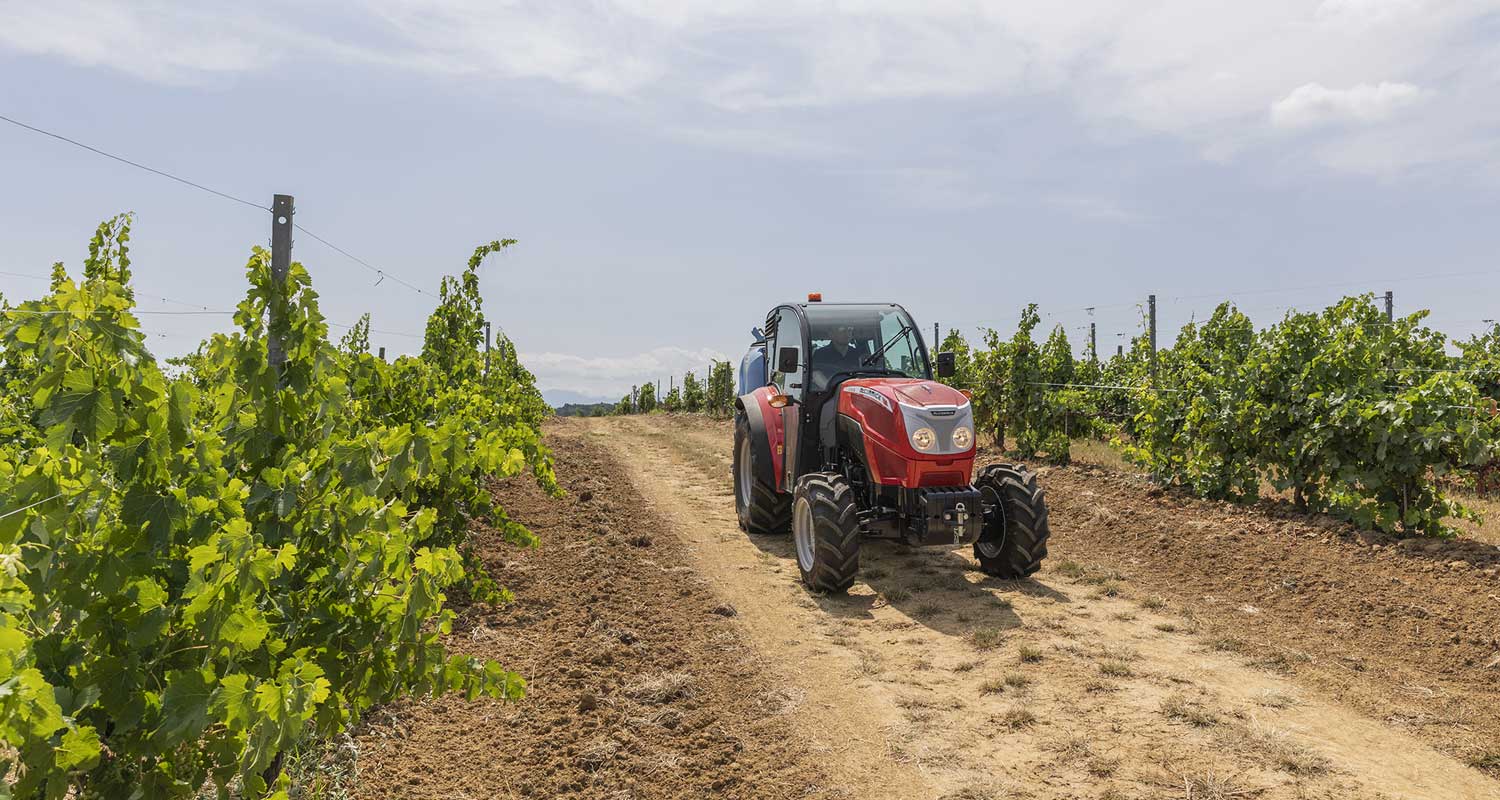

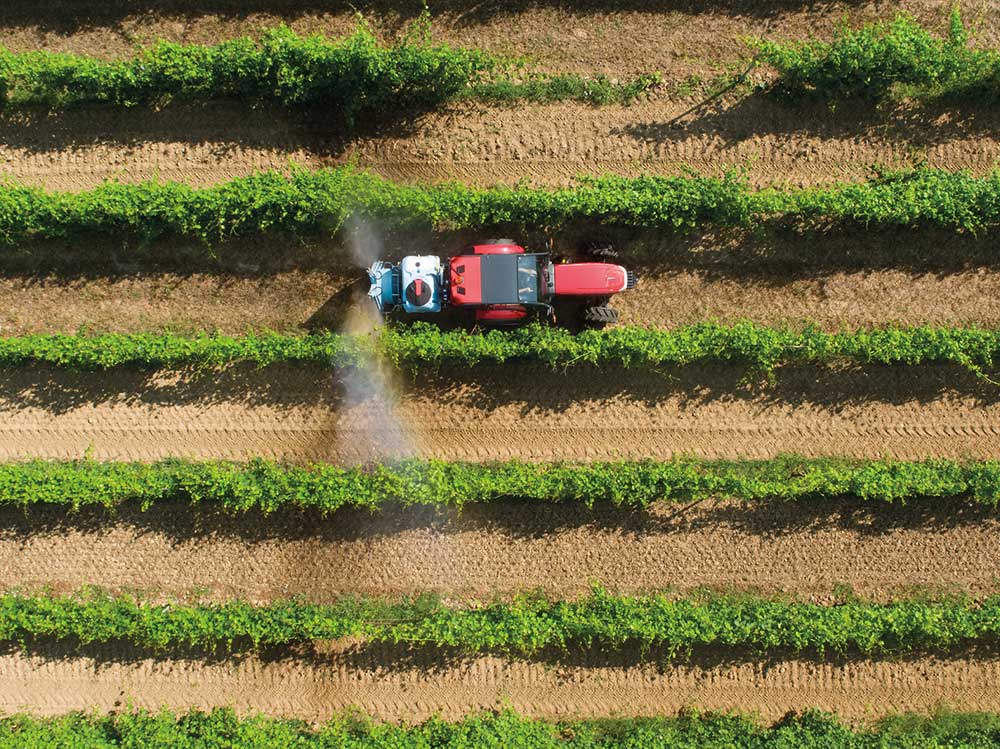

Vineyards: The Rex3 F is suited for all operations in traditional vineyards, and the Low-Profile cab version can even be used in vineyards with pergola and trellis systems.
Vegetables: Handling is one of the main features of the Rex3 F, adapting to all specialised crops where manoeuvrability is limited. At the same time, the Low-Profile cab version can also be used in greenhouses.
Farms: The X3 F is an extremely reliable and versatile tractor that is also suited for everyday farm applications with power demands from 55 to 75 hp and for road travel, where it offers excellent driving comfort.

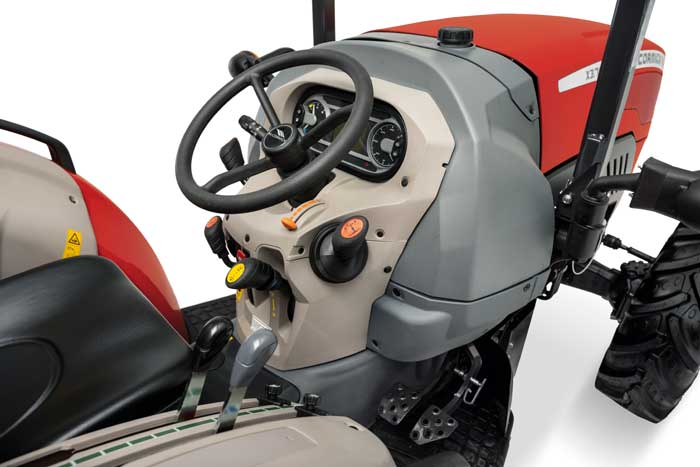

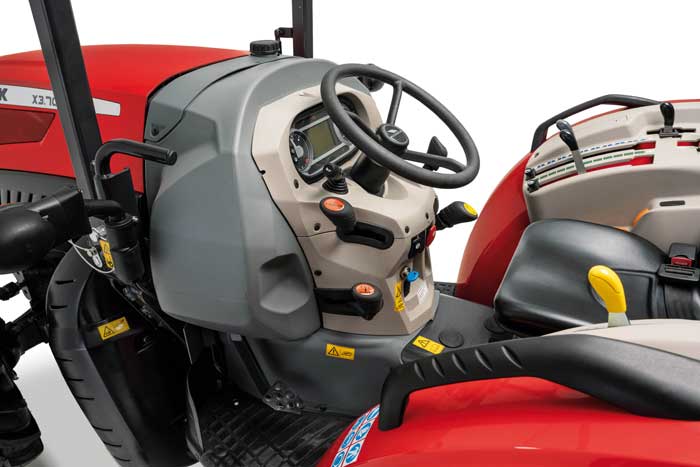

Driving position

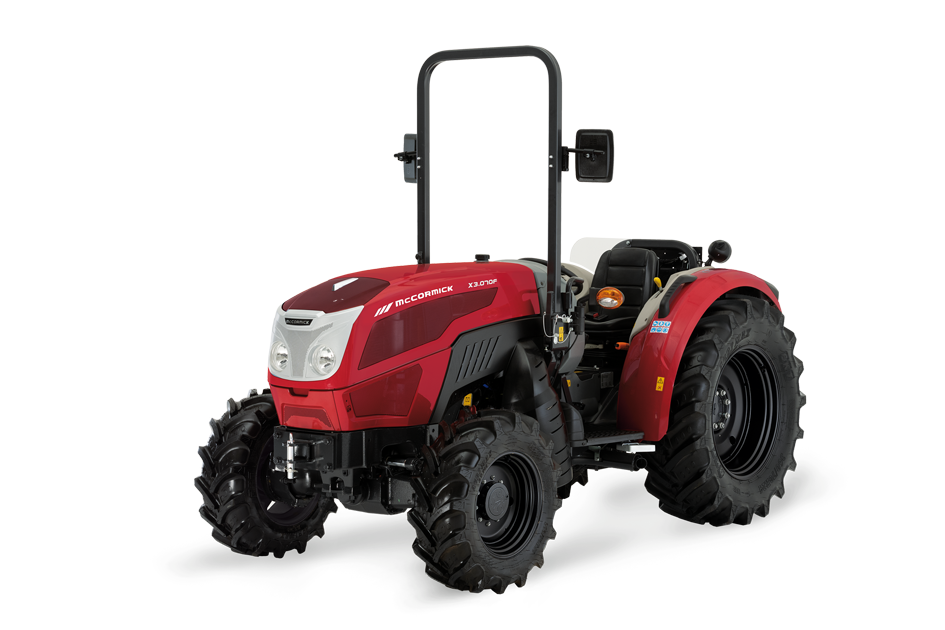

The X3 F is available either in ROPS configuration or with low-profile cab. One of the advantages of the X3 F is the possibility of installing a Low-Profile cab that has a monocoque structure, 1.16 m wide at the base that drops to 0.86 m at the roof, with an overall height from the ground of at least 1.87 m. Best in Class in the category of conventional tractors, this version of the cab guarantees maximum respect for foliage in crops with a low crown, while maintaining a high level of comfort for the operator. This last factor becomes evident when looking at the wide door opening for easier accessibility to the cab, the tilting steering wheel, the multifunction dashboard, the absence of levers on the central tunnel, the air conditioning circuit and the optional rear camera. Finally, the Low-Profile cab offers maximum visibility in all directions, even for lateral operations, working on slopes and in the greenhouse, maximising the possibilities of use for this range of tractors.

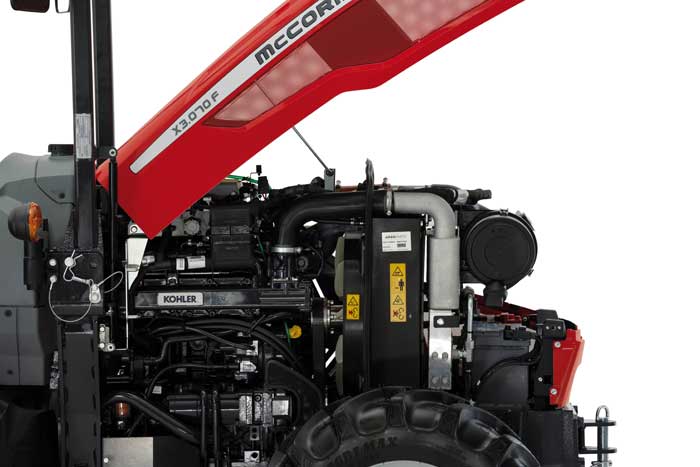

Kohler engines
The X3 F line-up includes three models with the new 4-cylinder, 16-valve, 2.5-litre Kohler engines with 55, 68 and 75 hp, with torque reserves of 50%, 45% and 32% respectively. Maintaining the considerable compactness of Kohler systems, the new engines are equipped with DOC systems without regeneration, therefore without affecting the productivity and efficiency of the machine in any way. Engine RPM management is provided by the Engine Memo Switch that allows you to store and quickly recall settings when passing from one activity to another. Full operational autonomy throughout the day is ensured by the 50-litre diesel tank.
Transmission made in Argo Tractors
Developed by Argo Tractors, the transmission of the X3 F offers 16 forward and 16 reverse speeds and come standard with a steeringcolumn synchro shuttle and a creeper.

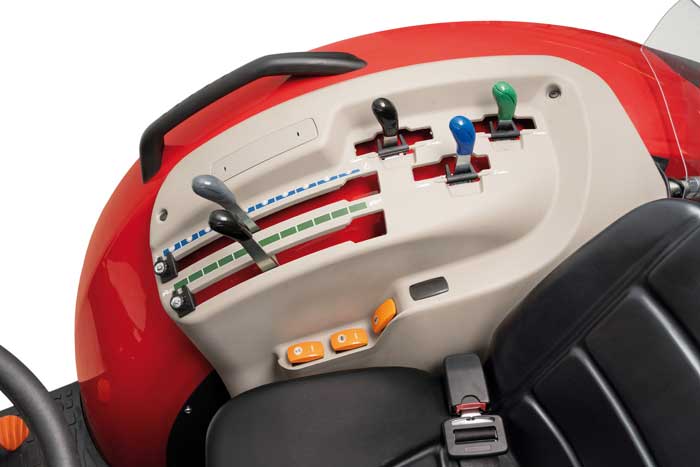

Hydraulic System
Designed for professional use, the hydraulic equipment delivers 30 litres/min for steering and 50 litres/min for spool valves, up to 3 with the possibility to bring one outlet also at the front, in addition to supporting the rear hydraulic hitch featuring mechanical control and ELS (Ergonomic Lift System), with anti-dumping system and a capacity as high as 2,700 kg.
Dimensions & Weights
X3.060 F | X3.070 F | X3.080 F-GE | |
---|---|---|---|
MIN WIDTH mm | 1358 | 1358 | 1358 |
WHEELBASE 4RM mm | 1950 | 1950 | 1950 |
MIN. HEIGHT TO STEERING WHEEL mm | 1256 | 1256 | 1256 |
TOTAL WEIGHT 4WD Kg | 2200 | 2200 | 2200 |
