Mchale

691 Bale Handler

Year2024

ManufacturerMcHale

Model691 Bale Handler

Mchale

691 Bale Handler

Year 2024
Manufacturer
Model 691 Bale Handler
Serial Number
Year 2024
Condition
Hours 0
Warranty
Stock Number
Tyres or Tracks
Front Tyre % Remaining
Rear Tyre % Remaining
Front Tyre Size
Rear Tyre Size
Cab Suspension
Engine Output
Travel Speed

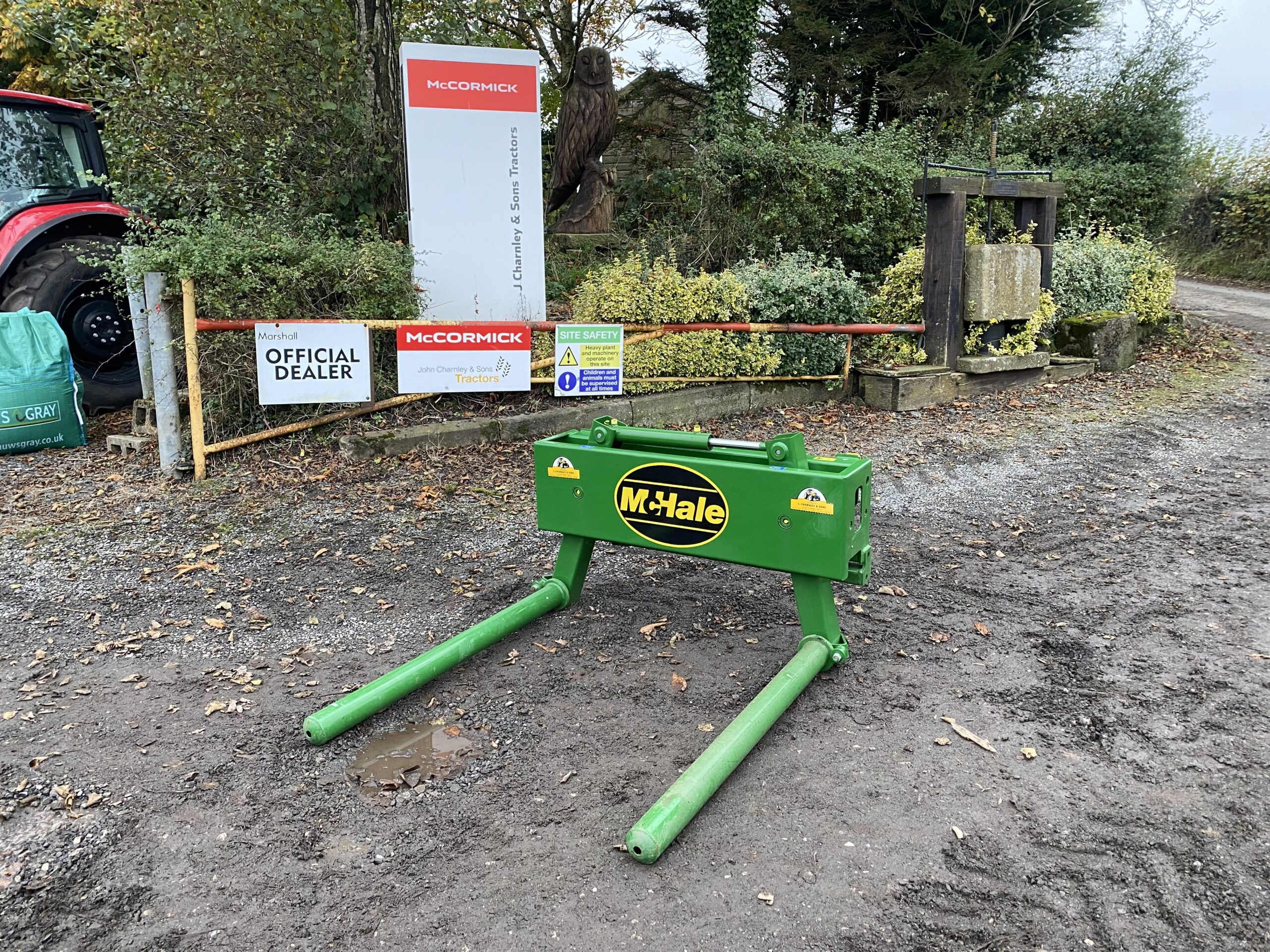

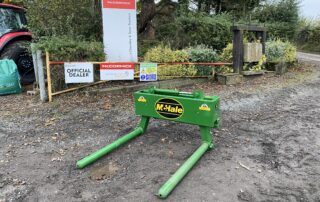

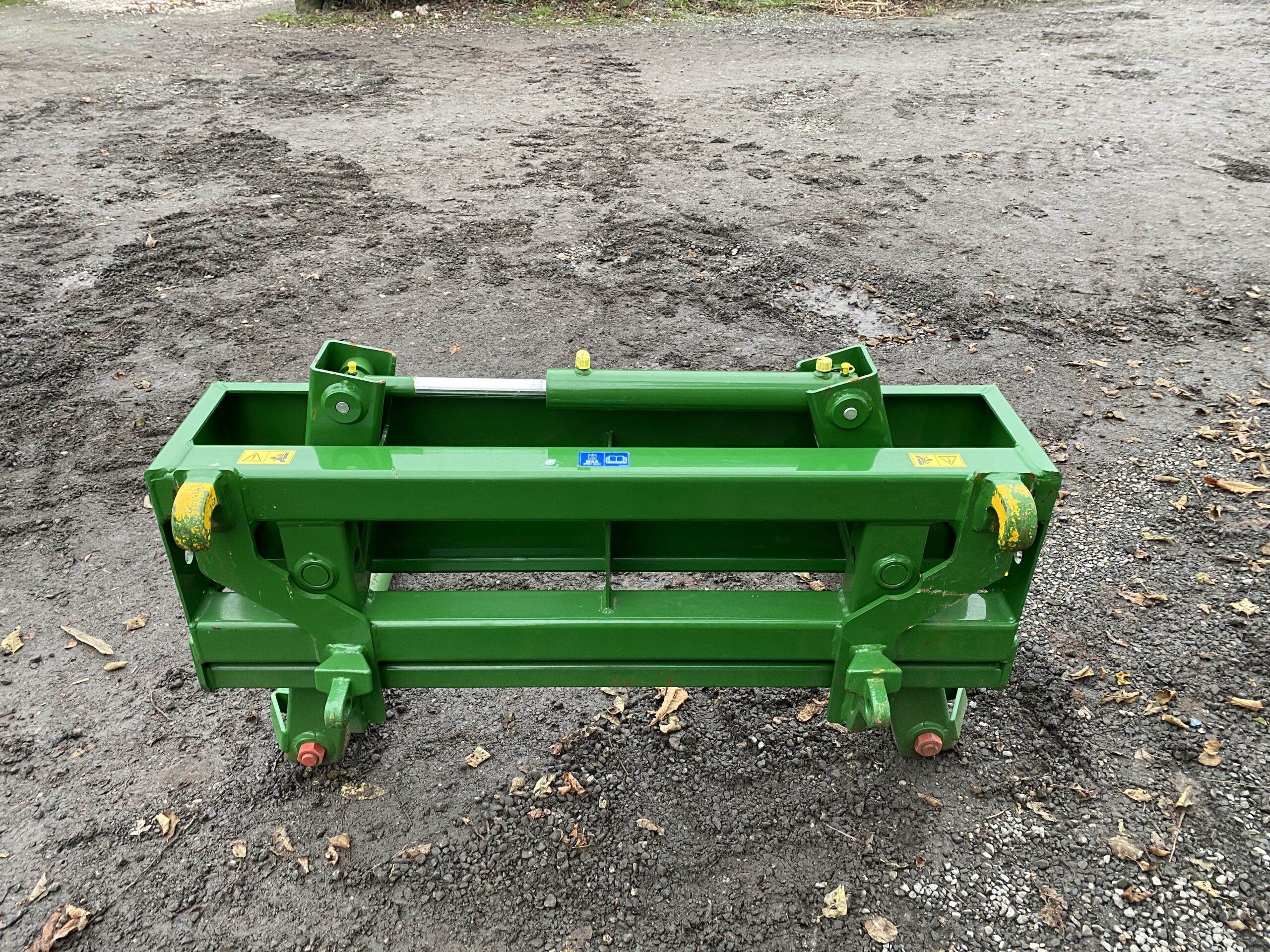

691 Round Bale Handler

Simplicity, versatility and strength are the main features of the McHale 691 round bale handler. When the 691 round bale handler is transporting wrapped bales, two adjustable rollers powered by a double-acting hydraulic ram, close to cradle and carry the wrapped or unwrapped round bale securely and safely.

The McHale 691 round bale handler is a heavy duty handler with rotating rollers that have tine reinforcement. It can be used to carry one bale of silage or spike two bales of hay or straw.

On the 691 , the rotating rollers can be removed, transforming it into a spike type round bale handler capable of transporting two unwrapped bales of silage, hay, straw or lucerne at the one time. With its rugged, high-quality construction and large lifting capacity the McHale 691 round bale handler is the logical choice for you.



  • On the McHale 691, when the two legs are extended out fully, the two arms lock in place for transportation stopping the arms from moving and reducing associated noise and vibrations.
  • The rotating rollers on the McHale 691 round bale handler allow for careful handling and stacking of wrapped round bales of silage.

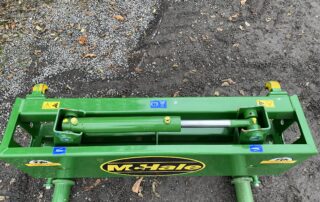

  • The double acting hydraulic ram on the 691 allows the rollers to cradle and carry the bale securely and safely.
  • On the McHale 691 the two rotating rollers are reinforced with tines to provide additional strength when transporting wrapped or unwrapped round bales.

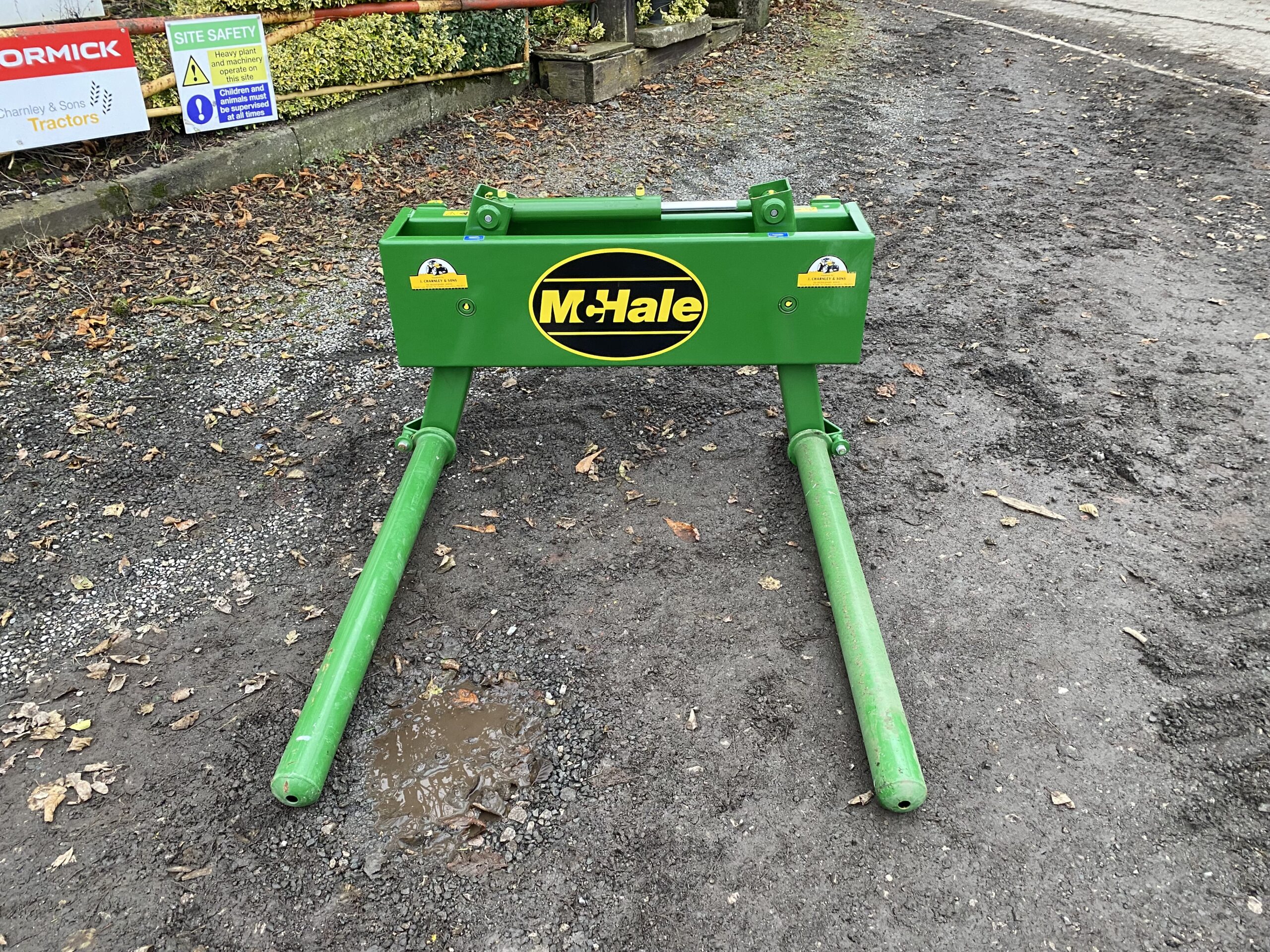

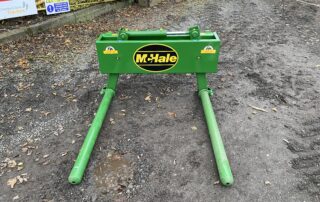

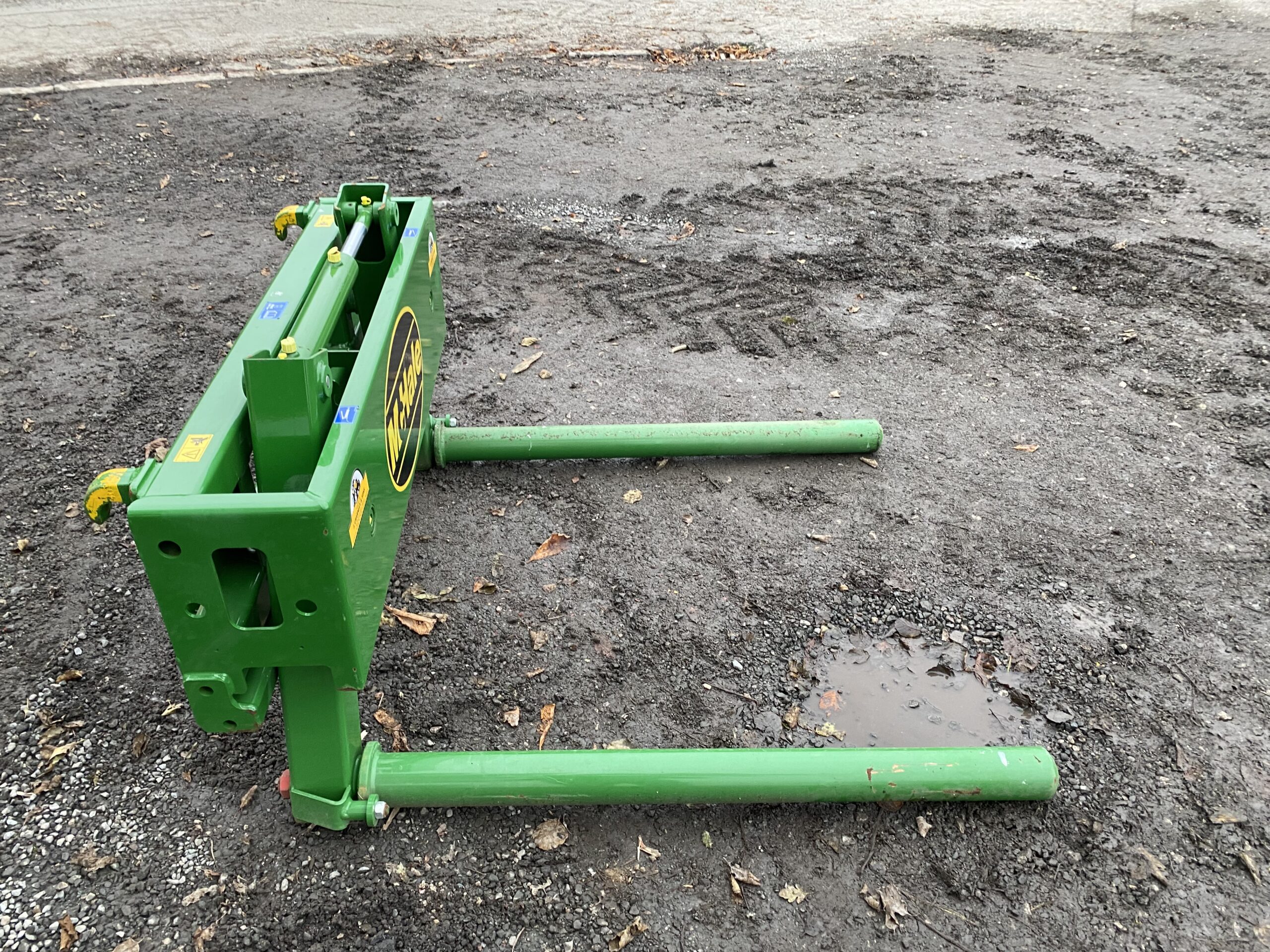

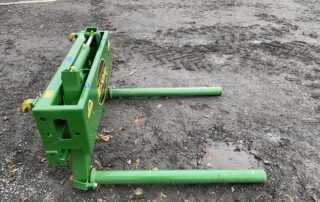

  • An operator can easily remove the rotating rollers on the McHale 691 to expose the two tines, which can be used to spike and carry two bales of hay or straw.
  • The McHale 691 can be used to spike two bales and transport the round bales.

Weight 160 kg / 352 lbs
Height 0.65 m / 2’0”
Length (overall) 1.42 m / 4’7”
Length of Arms 1.19 m / 4’0”
Max width (fully open) 1.63 m / 5’4”
Open Distance between the Arms 1.37 m / 4’5” (Open)
Closed Distance between the Arms 0.73 m / 2’4  (Closed)
Lifting Capacity 1100 kg / 2425 lbs
Hydraulic Requirements One Double Acting Service
Check Valve & Pipes Standard
Minimum Hydraulic Pressure 150 bar/ 2250 Ibs/sq.in
