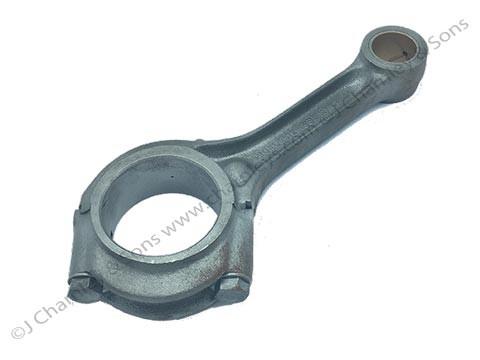

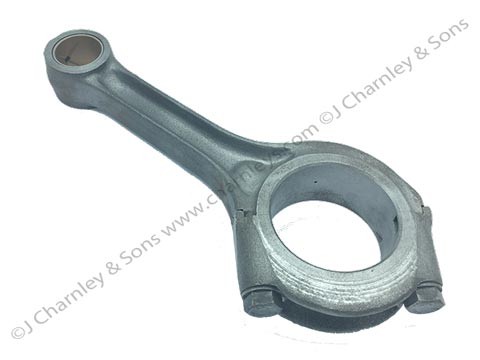

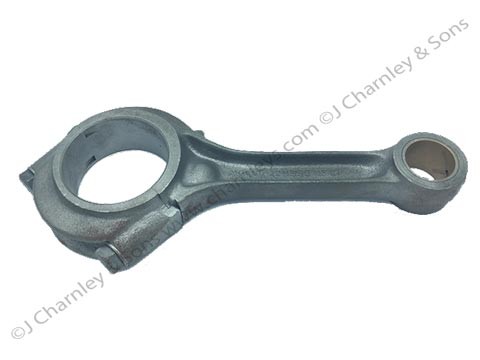

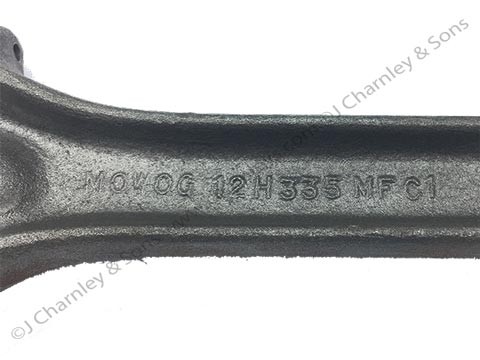

12H334 BMC 1.5 CON-ROD ASSY. BMC 1500cc four cylinder diesel engine connecting rod assembly for cylinders 2 and 4. Con-rod will be marked 12H335 and Cap 12H338.

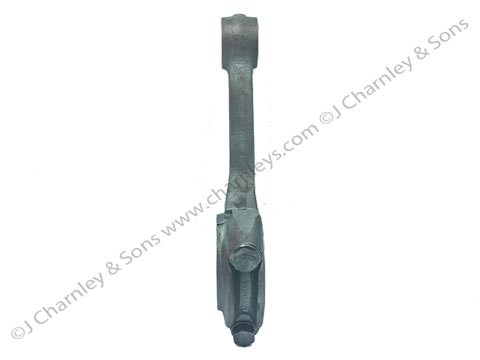

Note: with con-rod bolts facing you the offset flange should be to the left hand side.

Assembly contains:

• x1 12H335 RH CONNECTING ROD (cast into part)
• x1 12H338 CONNECTING ROD CAP
• x1 12H201 LITTLE END BUSH
• x1 12H339 LOCK TAB
• x2 51K1388 BOLT

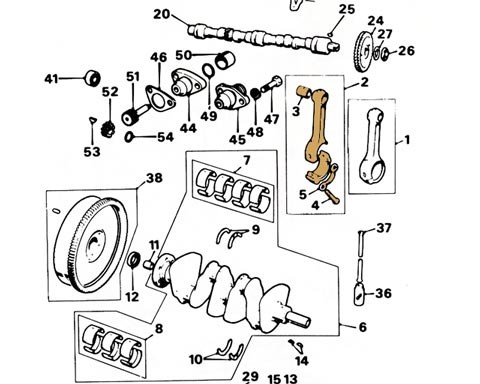

See item 2 in the illustration.

Fitted to:

• Nuffield 4/25
• Leyland 154
• BMC 1500cc 4 cylinder diesel engine
• Thornycroft T90 marine engine
• Sherpa Vans and Pickups
• Tempest 15D marine engine

Note: Big end bolts torque – 35 lbs/ft (4.85 kg/m)
