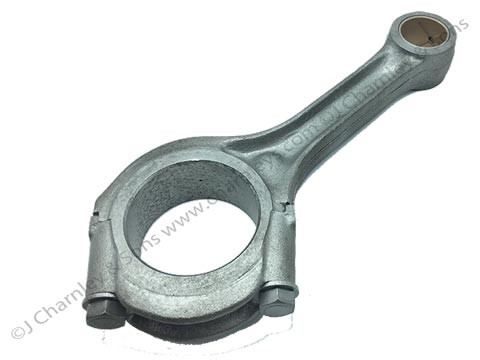

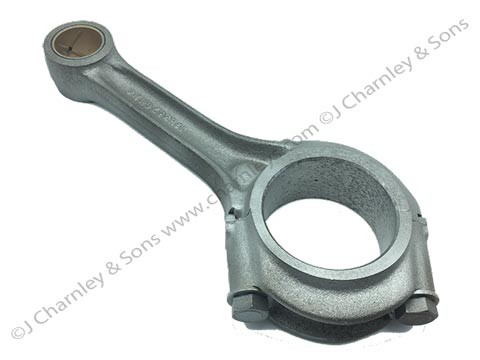

12H336 CON-ROD ASSEMBLY.  BMC 1500cc four-cylinder diesel engine connecting rod assembly for cylinders 1 and 3.

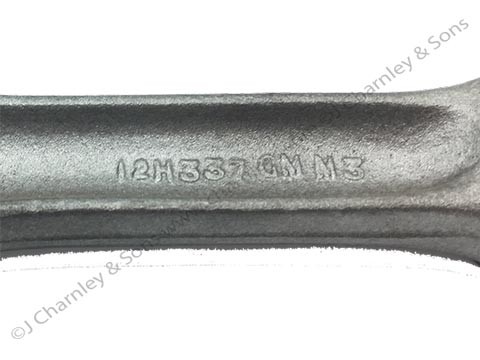

Con-rod will be marked 12H337 and Cap 12H338.

Note: with con-rod bolts facing you the offset flange should be to the right hand side.

Assembly contains:

• x1 12H337 RH CONNECTING ROD (cast into part)
• x1 12H338 CONNECTING ROD CAP
• x1 12H201 LITTLE END BUSH
• x1 12H339 LOCK TAB
• x2 51K1388 BOLT

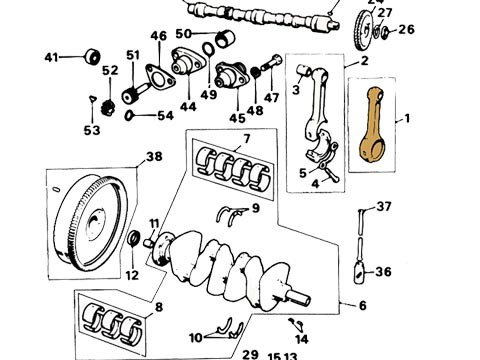

See item 1 in the illustration.

Fitted to:

• Nuffield 4/25
• Leyland 154
• BMC 1500cc 4 cylinder diesel engine
• Thornycroft T90 marine engine
• Sherpa Vans and Pickups
• Tempest 15D marine engine
