PISTON ASSEMBLY – 100mm
PISTON ASSEMBLY – 100mm
£43.85 Excl. VAT
Part Number:

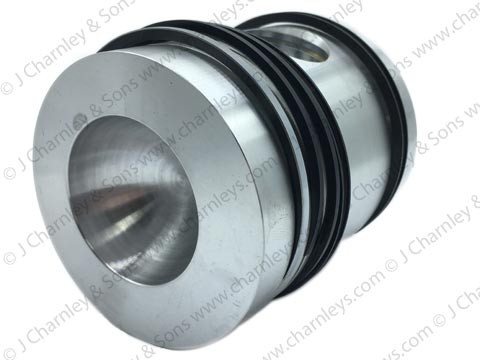

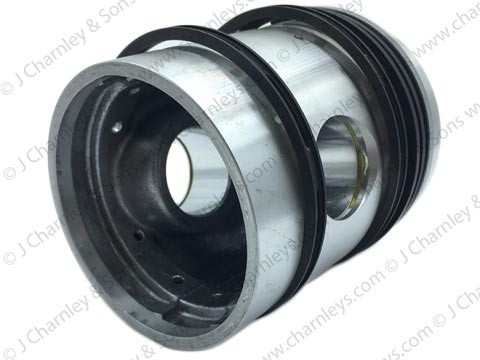

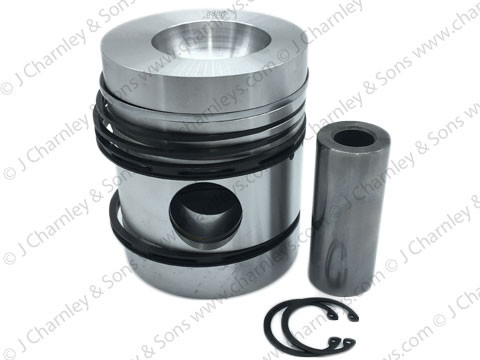

37D426 PISTON ASSEMBLY. Piston assembly complete with piston rings.
Complete 100mm, 5 Ring Piston and Ring Set.

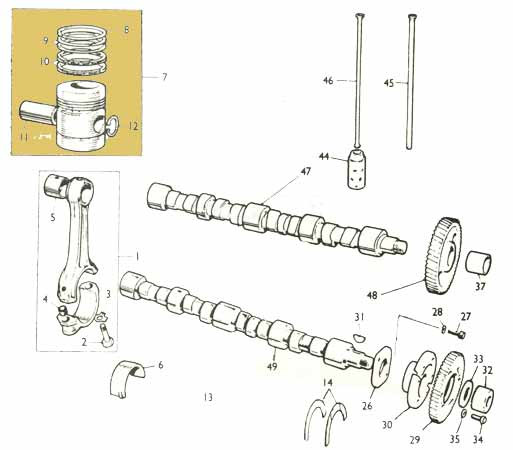

See item 7 in the illustration.
Rings also available separately, see part number AHM9025 RING SET.
Piston for engines:
BMC 3 Cylinder 2.8T
BMC 3 Cylinder 2.8TD
BMC 4 Cylinder 3.8T
BMC 4 Cylinder 3.8TA
BMC 4 Cylinder 3.8TD
BMC 6 Cylinder 5.7
Specification:
Crown diameter 99.57mm
Compression height 70.19mm
Overall height 120.79mm
Chamber diameter 57.91mm
Chamber depth 57.91mm
Piston pin diameter 34.92mm
5 rings
Fitted to:
- Nuffield 342, 460, 10/42, 10/60, 4/65
- Leyland 384
- JCB 2B, 2D, 3, 3C, 3D, 4C, 4D
Notes: Piston pin diameters vary according to engine model. Check dimensions carefully before ordering.
| Weight | 1.81 kg |
|---|
| OEM Number | 37D426 |
|---|---|
| Country Of Origin |
Nuffield Tractors:
10/42 - 10/603/45 - 4/65342 - 460
Leyland Tractors:
Middleweight Range:
344 - 384
