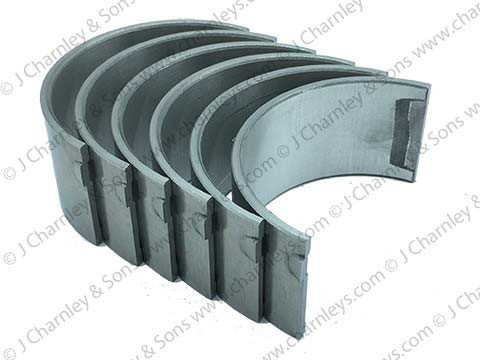

8G2369 BIG END BEARING SET STD.

Standard connecting rod big end bearing set for the 3 cylinder BMC 2.6 T/TA and 2.8 T/TA engines.

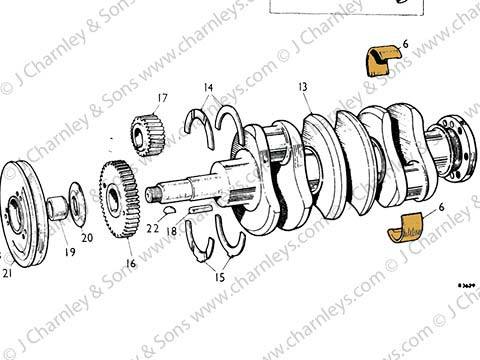

See item 6 in the illustration.

Fitted to:

• Nuffield 3DL, 342, 10/42
• JCB 2B Pre 1965 (Check engine model)

Note: If your crankshaft is worn or damaged it can be reground to take undersize bearings.  Undersized (U/S) bearings have same measurement at outer side but are a little bit thicker from inner side.  The following standard and undersize bearings are available.

8G2369 STD Bearing Set
8G2369-10 Bearing Set .010 (U/S)
8G2369-15 Bearing Set .015 (U/S)
8G2369-20 Bearing Set .020 (U/S)
8G2369-30 Bearing Set .030 (U/S)
8G2369-40 Bearing Set .040 (U/S)
8G2369-45 Bearing Set .045 (U/S)
8G2369-50 Bearing Set .050 (U/S)
8G2369-60 Bearing Set .060 (U/S)
