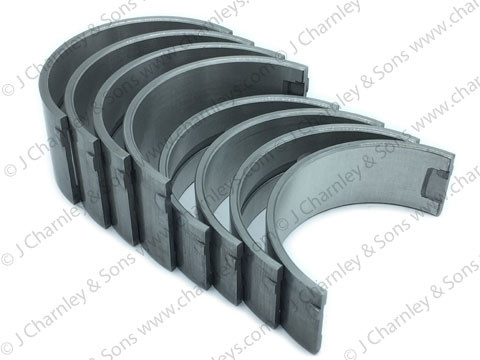

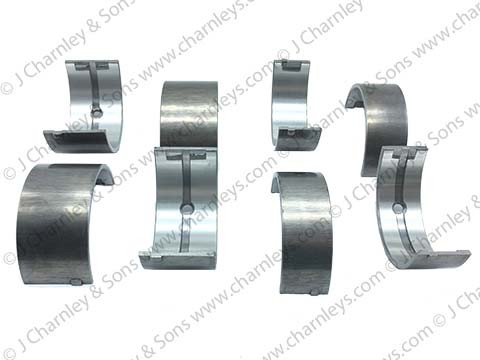

8G2367-30 BEARING SET – .030(U/S). Undersized crankshaft main bearing set

For 0.030″ (0.762mm) undersize crankshaft in 3 cylinder BMC 2.6 T/TA and 2.8 T/TA engines.

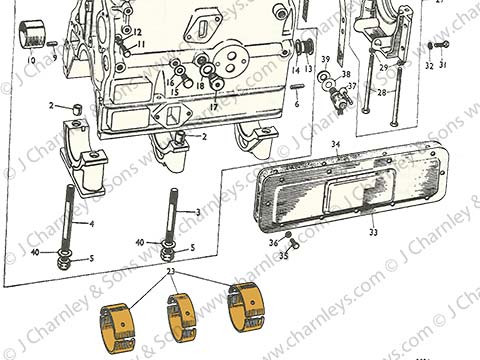

See item 23 in the illustration.

Fitted to:

• Nuffield 3DL, 342, 10/42
• JCB 2B Pre 1965 (Check engine model)

Note: If your crankshaft is worn or damaged it can be re-ground to take undersize bearings. Undersized bearings have same measurement at outer side but are a little bit thicker from inner side to make up the difference. The following standard and undersize bearings are available;

8G2367 BEARING SET STD
8G2367-10 BEARING SET – .010(U/S
8G2367-15 BEARING SET – .015(U/S)
8G2367-20 BEARING SET – .020(U/S)
8G2367-30 BEARING SET – .030(U/S)
8G2367-40 BEARING SET – .040(U/S)
8G2367-45 BEARING SET – .045(U/S)
8G2367-50 BEARING SET – .050(U/S)
8G2367-60 BEARING SET – .060(U/S)
