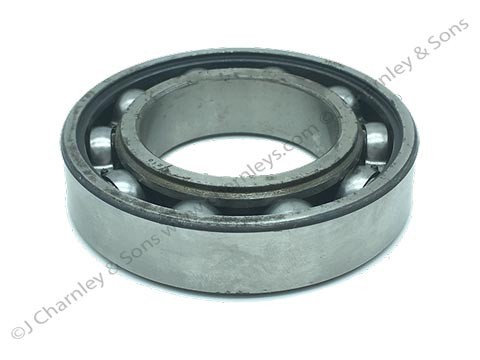

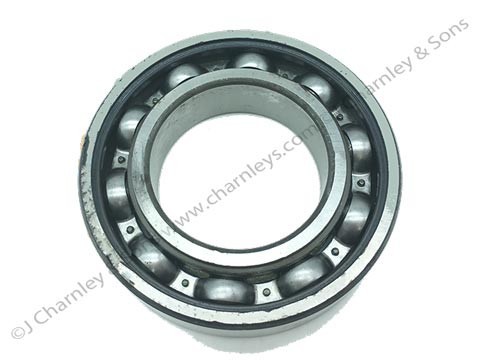

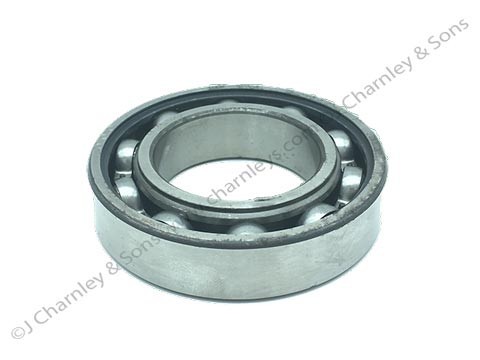

ATJ1020 BEARING LAYSHAFT. Nuffield and Leyland gearbox, layshaft support bearing.

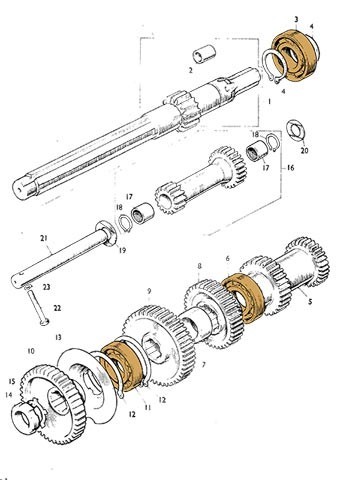

2 Used per tractor on early 5-speed gearbox – See item number 20 and 24 in the illustration.

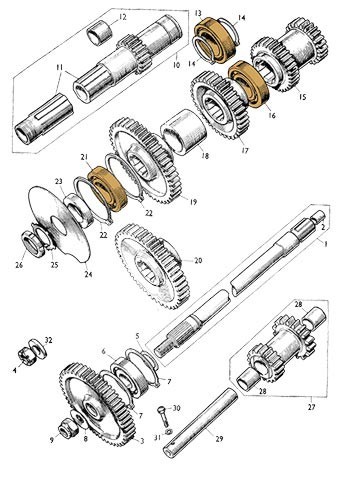

3 Used per tractor on later 5-speed gearbox – See item number 13, 16 and 21 in the illustration.

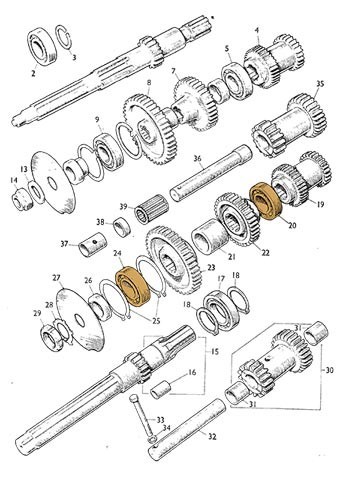

3 Used per tractor on 5×2, 10-speed gearbox – See item number 3, 6 and 11 in the illustration.

Dimensions:

Outside diameter – 90mm (3.54″)

Inside diameter – 50mm (1.97″)

Width – 20mm (0.787″)

Fitted to tractors:

• Nuffield: Universal three (3DL), Universal four (4DM)
• Nuffield: 342, 460
• Nuffield: 10/42, 10/60
• Nuffield: 3/45, 4/65
• Leyland: 253, 245, 344, 384, 255, 270, 262, 272
