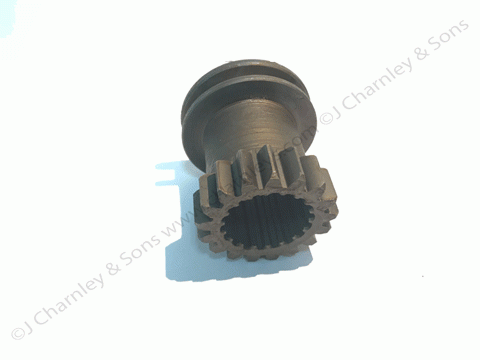

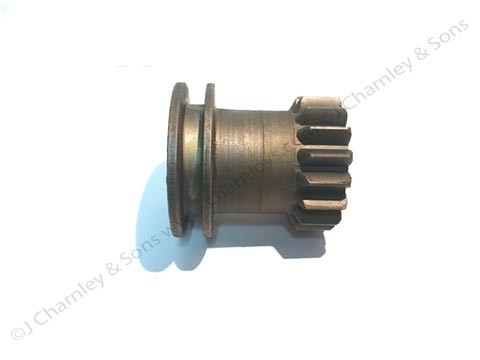

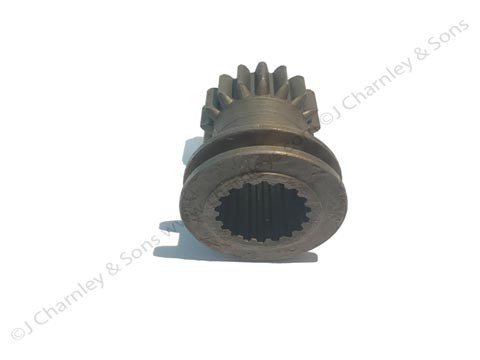

ATJ7643/CTJ6060 SLIDING GEAR. Nuffield and Leyland high/low sliding gear for 5×2 gearbox.

Slides backwards or forwards on the input shaft (ATJ7642 on Nuffield 10/42 and 10/60 or ATJ7895 on Nuffield 3/45 and 4/65) to engage high or low range.

Also fitted to JCB 2B MK I, II, 3D and 4D with 5×2 crash box.

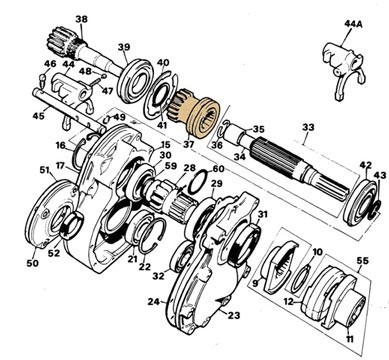

See item number 37 in the illustration.

Fitted to tractors:

• Nuffield: 10/42, 10,60
• Nuffield: 3/45, 4/65
• Leyland: 253, 245, 344, 384, 255, 270, 262, 272
• Leyland: 285, 2100, 485, 4100
