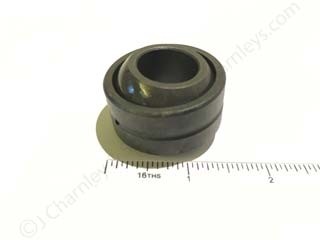

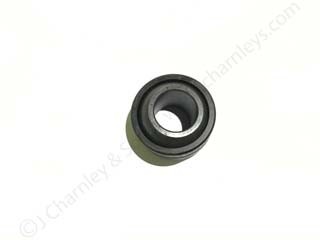

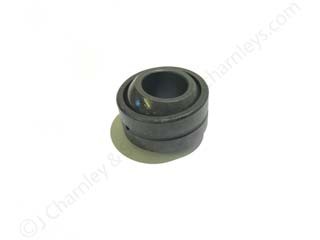

BAU1427 PIVOT BEARING.

Power Steering Ram Pivot Bearing on Leyland 4 wheel drive tractors.

For Leyland four wheel drive, six stud axle tractors with a CTJ7706 Power Steering Ram fitted.  The bearing is held in place by a Snap Ring.

This bearing is also fitted as standard to the lower fixed end of the Hydraulic Assistor Ram on Leyland 282 and Leyland 482 and as an optional extra to later 802 and 804 tractors.

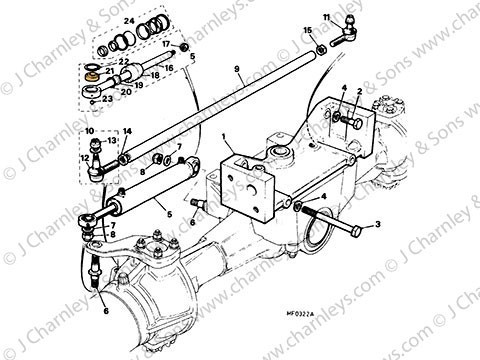

Bearing for power steering ram, see item 21 in first illustration.

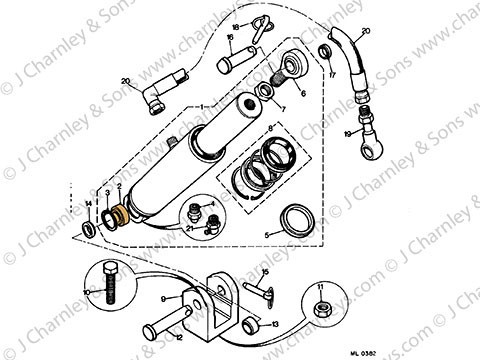

Bearing for hydraulic assistor ram, see item 2 in second illustration.

Fitted to:

• Leyland 462, 472, 482 604, 704, 804
• Marshall 604, 704, 804
