PISTON RING SET – 100mm
PISTON RING SET – 100mm
£15.50 Excl. VAT
Part Number:
AHM9025 RING SET. 5 ring piston rings set for 100 mm piston.

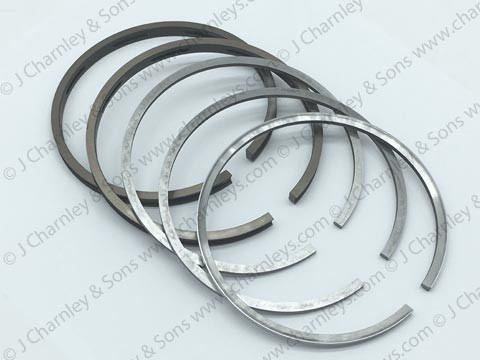

Ring set contains 5 rings:

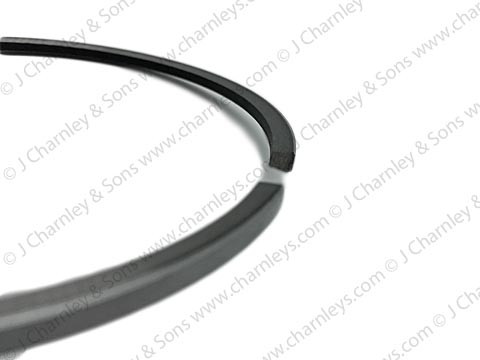

1 x CMK196 top taper/wedge chrome ring – Ring gap .014″ to .20″ (.36 to .51 mm)

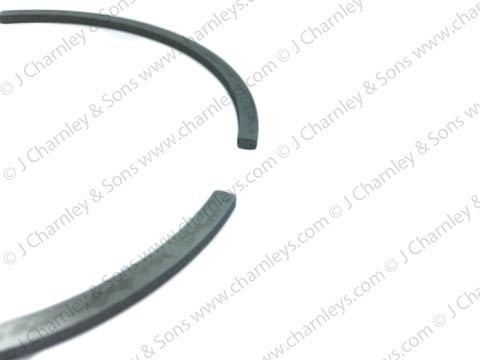

2 x CMK198 2nd and 3rd compression taper face rings – Ring gap .011″ to .016″ (.28 to .41 mm)

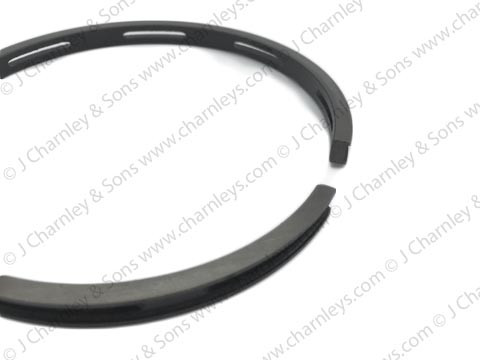

2 x CMK197 4th and 5th slotted scraper oil rings – Ring gap .011″ to .016″ (.28 to .41 mm)
Suitable for 37D426 PISTON. in the following engines:
- BMC 3 Cylinder 2.8T engine
- BMC 3 Cylinder 2.8TD engine
- BMC 4 Cylinder 3.8T engine
- BMC 4 Cylinder 3.8TA engine
- BMC 4 Cylinder 3.8TD engine
- BMC 6 Cylinder 5.7 engine
Fitted to:
- Nuffield 342, 460, 10/42, 10/60, 3/45, 4/65
- Leyland 384
- JCB 2B, 2D, 3, 3C, 3D, 4C, 4D
Notes: Check dimensions carefully before ordering. These ring sets are interchangeable dependant on pistons and other factors. To avoid mistakes please contact us to discuss your requirement.
| Weight | 0.16 kg |
|---|---|
| Dimensions | 13 × 12 × 3 cm |
| OEM Number | AHM9025 |
|---|---|
| Country Of Origin |
Nuffield Tractors:
10/42 - 10/603/45 - 4/65342 - 460
Leyland Tractors:
Middleweight Range:
344 - 384
