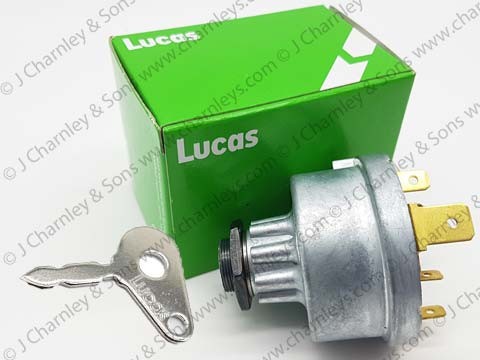

BAU2007 SWITCH ASSEMBLY.  Genuine Lucas four position ignition switch.

This Leyland starter switch comes complete with one key.  Spare keys are also available seperately.

The switch is fitted to most Leyland tractors, Marshall QM-cab and non-cab tractors.  It can be retrofitted to Marshall Explorer Cab models of tractor.

Four positions:

1. Off
2. Ignition
3. Heat
4. Start

Positions 3 & 4 are spring loaded so that when released the key will return to position 2.

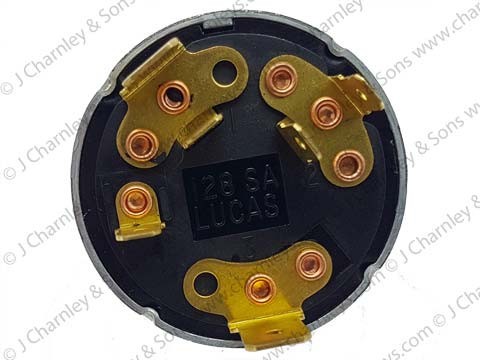

Specifications: 6.3mm and 9.5mm spade terminals. To fit hole depth from approximately 16mm to 19mm. Largest diameter 53.7mm.

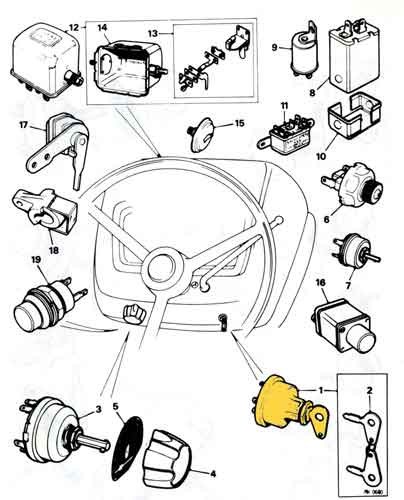

See item number 1 in the illustration.

Fitted to tractors:

• Nuffield 3/45, 4/65
• BMC Mini
• Nuffield 4/25
• Leyland 154, 184, 235, 302
• Marshall 302
• Leyland 253, 245, 344, 384, 255, 270, 262, 272, 462, 472, 282, 482
• Leyland 502, 602, 604, 702, 704, 802, 804
• Leyland 285, 2100, 485, 4100
• Marshall 502, 602, 604, 702, 704, 802, 804 (QM-Cab and Cabless)

A cheaper, functional non-genuine alternative is also available, see part no. BAU2007N
