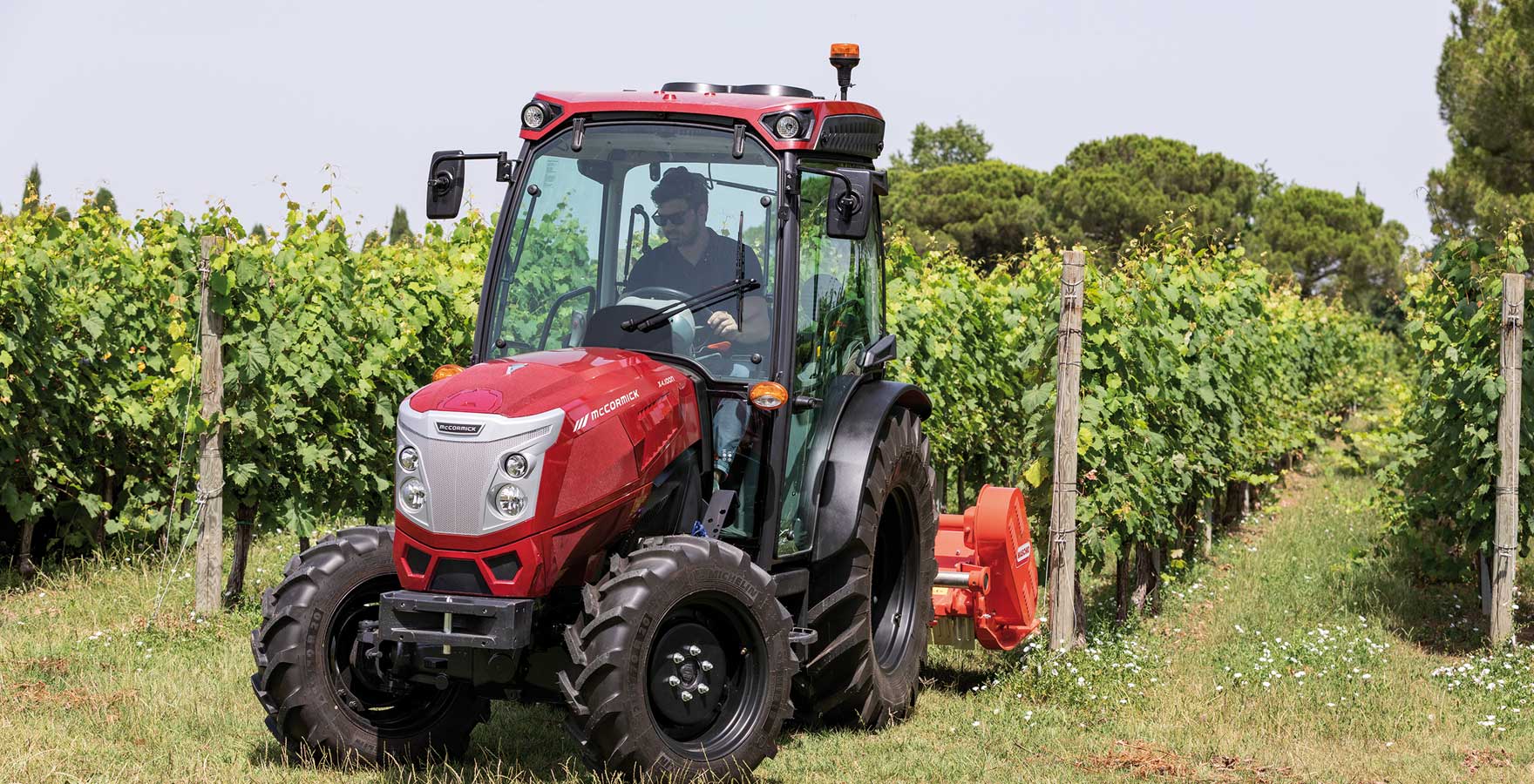

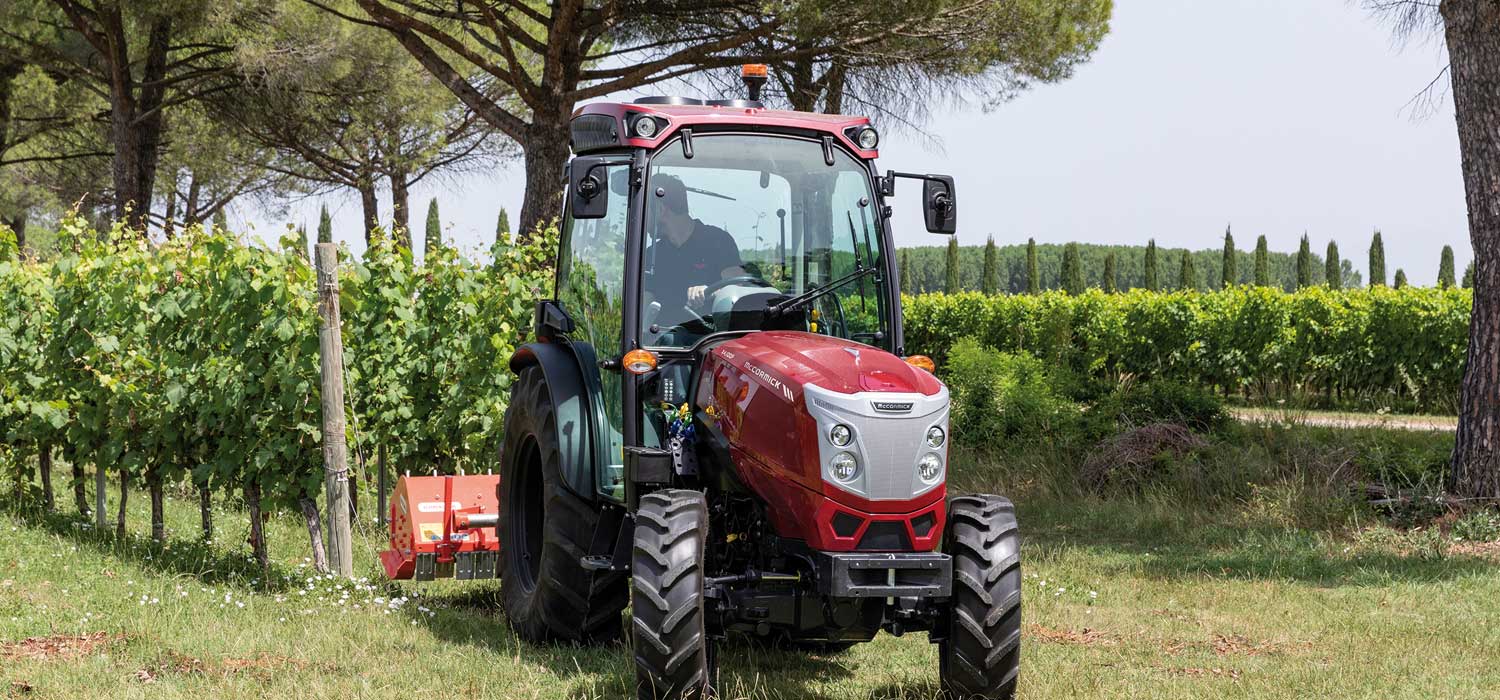

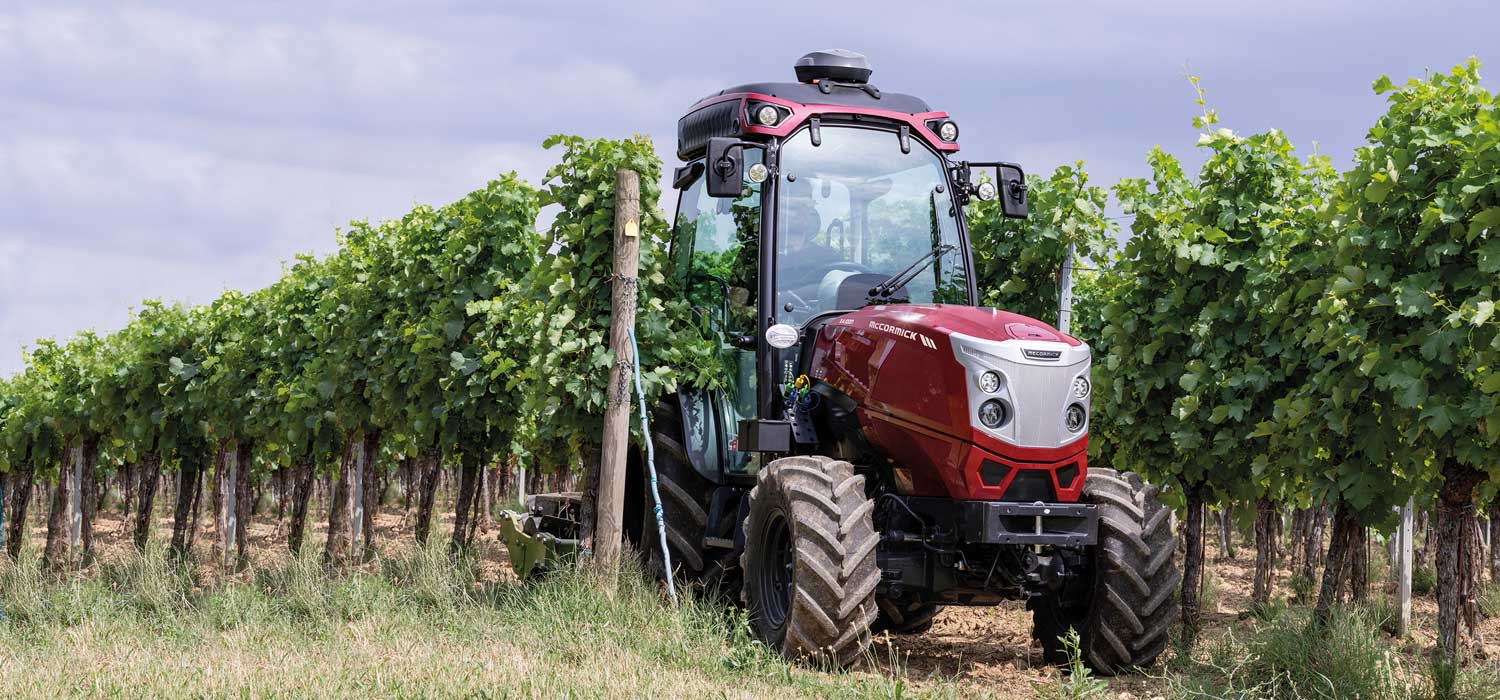

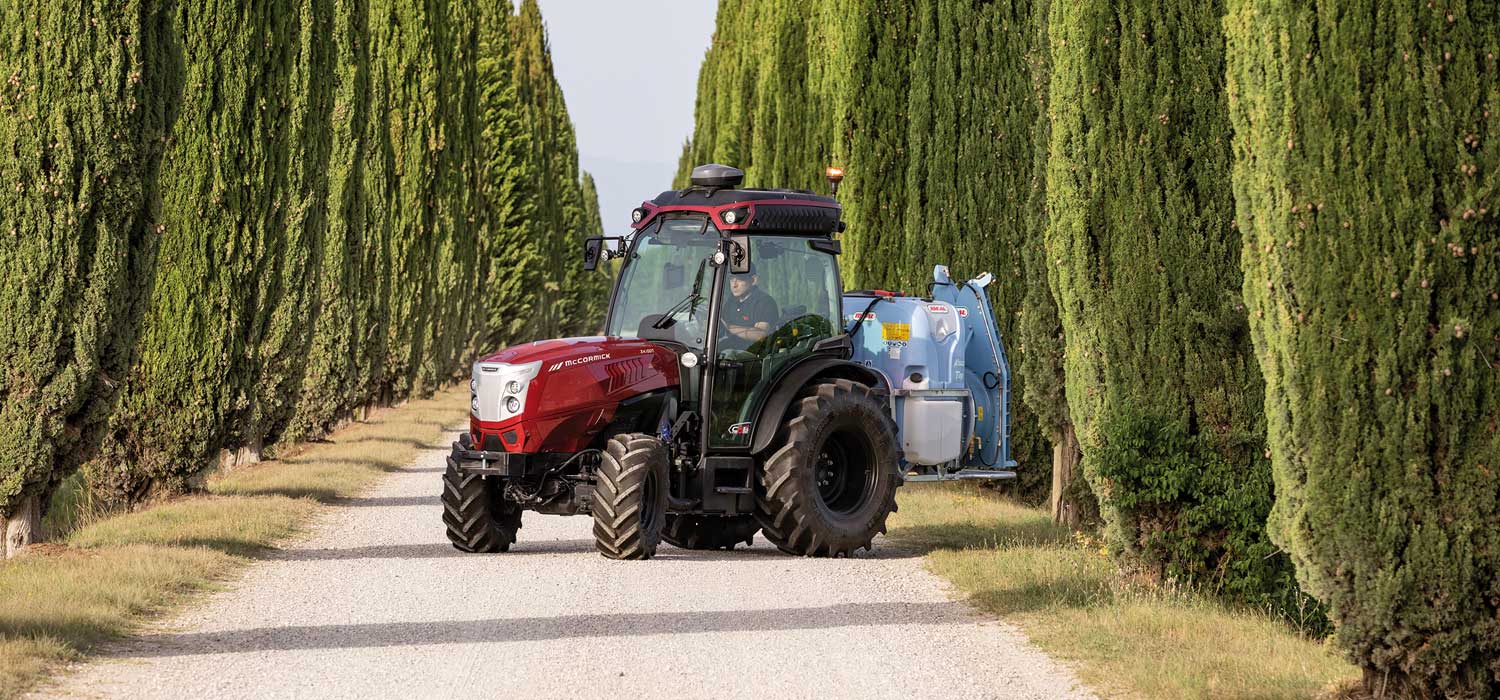

X4F is characterised by its high traction capacity
Engine | Power | Transmission |
---|---|---|
2,9/ 4 | 75 90 95 102 112 | P3-Drive 48AV+16RM |
X4F is characterised by its high traction capacity, as well as a comfortable ride on the road, made possible by the new cab with mechanical suspension, the suspended front axle and, last but not least, the ADS (Advanced Driving System), which can be connected to satellite-guidance and telemetry systems.

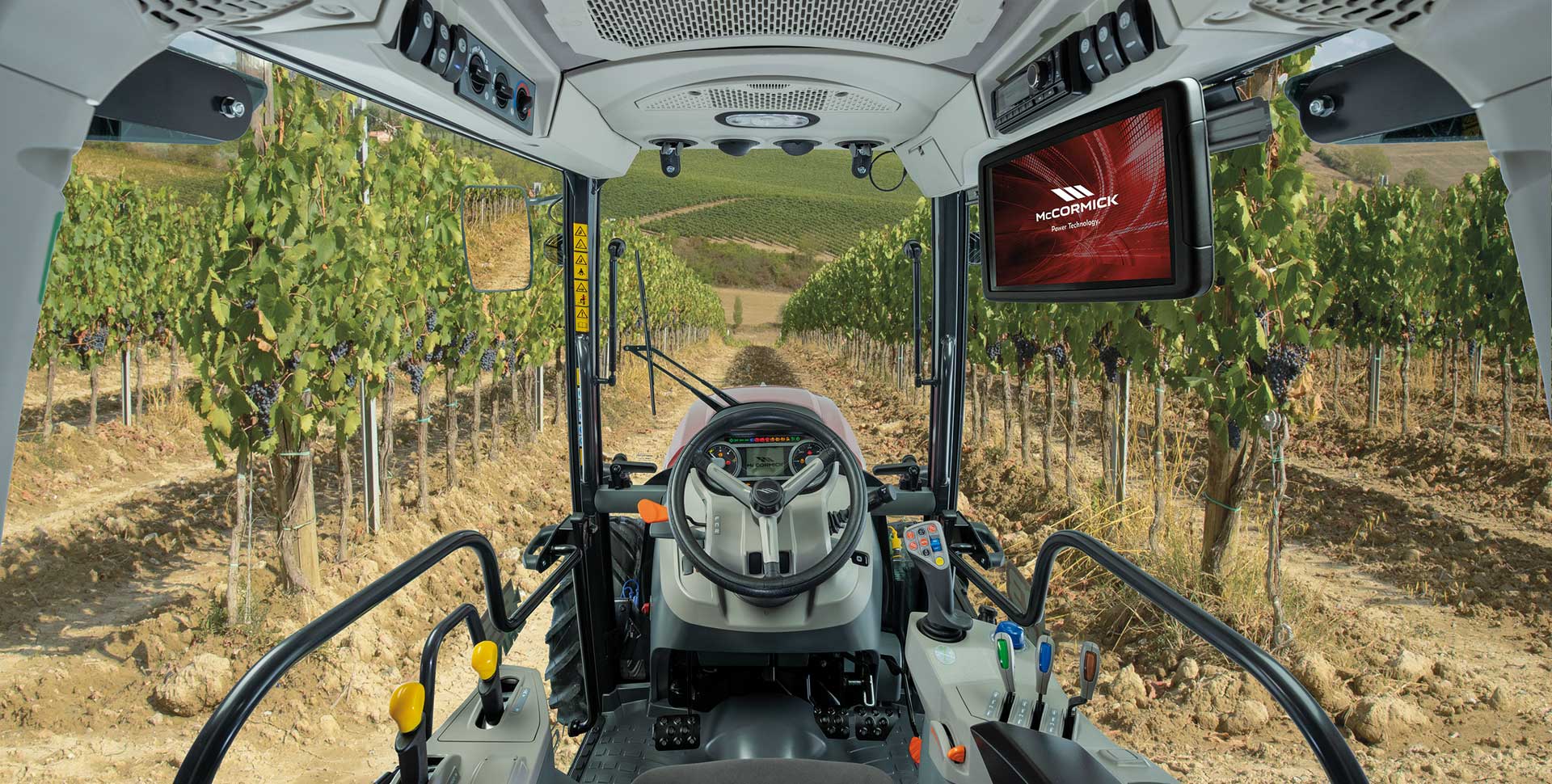

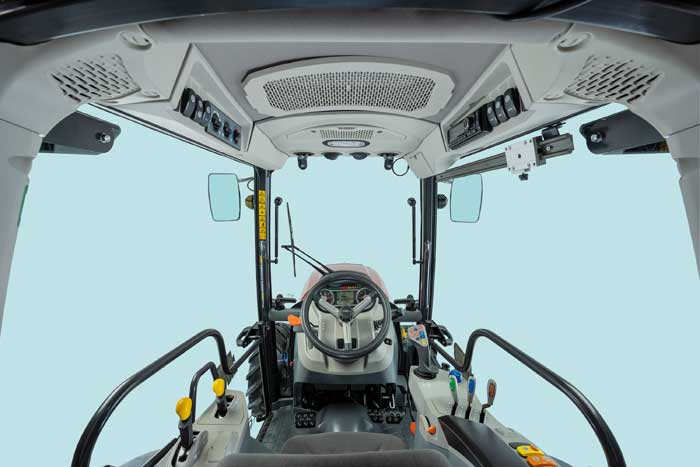

Premiere Cab, the control centre of your producitivity
The Premiere Cab, the new cab of the X4F, offers the operator a well-lit, comfortable and safe working environment. The four-post design provides full all-round visibility and the rear-hinged doors allow easy access to the driving position. The flat, clutter-free platform, adjustable driver’s seat, ergonomic controls, automotive-grade fit and finish and excellent climate control system make working days less tiring and more productive. The external width of the cab is 1,205 mm on the F and XL models and 1,000 mm on the N and V models. In the Premiere Cab you have full control over your work. The digital instrument panel constantly monitors the tractor; the steering wheel is telescopic and tilts with the dashboard; the seat has air suspension; the control levers, pedals and joystick have an ergonomic layout; the fit and finish is of automotive quality. The cab of the X4F offers a functional working environment that provides greater comfort and more control over your work, which in turn leads to greater productivity.

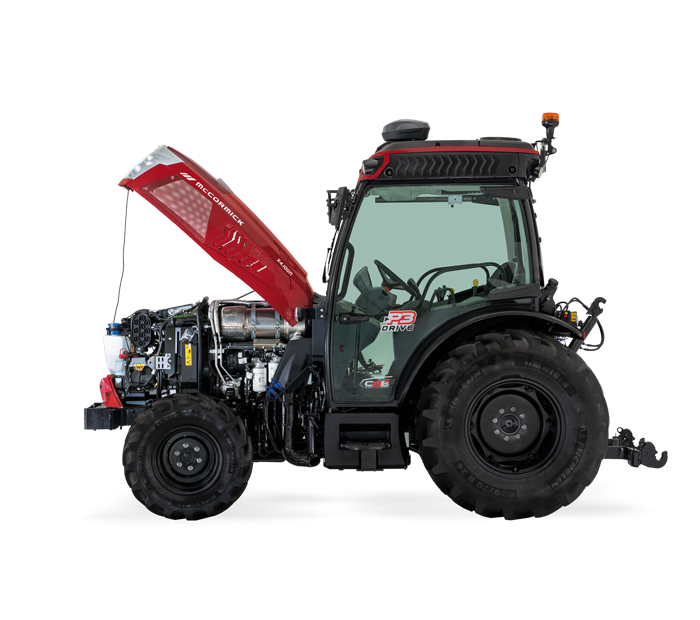

Stage V compliance
Stage V compliance is guaranteed by the innovative system that uses a passive regeneration DPF, DOC oxidation catalyst and, for models over 75 hp, SCR (selective catalyst reduction) catalytic converter and AdBlue® tank with practical quick-access and quick-top-up system. The engine maintenance interval has been extended to 1,000 hours, significantly reducing operating costs and downtime.
X4.080 F-N-V-XL | X4.090 F-N-V-XL | X4.100 F-N-V-XL | X4.110 F-N-V-XL | X4.120 F-N-V-XL | |
---|---|---|---|---|---|
Manufacturer | Deutz AG | Deutz AG | Deutz AG | Deutz AG | Deutz AG |
Rated power (ISO) hp/kW | 75 / 56 | 78 / 58 | 85 / 63 | 95 / 70 | 104 / 77 |
Max power (ISO) hp/kW | 75 / 56 | 90 / 66 | 95 / 70 | 102 / 75 | 112 / 82 |
Max torque Nm | 375 | 378 | 400 | 410 | 420 |
Displacement cm³ | 2900 | 2900 | 2900 | 2900 | 2900 |
Cylinders / Valves | 4 TA / 8 | 4 TA / 8 | 4 TA / 8 | 4 TA / 8 | 4 TA / 8 |
Fuel tank capacity L | 80 (F) / 65 (N-V) / 75 (XL) | 80 (F) / 65 (N-V) / 75 (XL) | 80 (F) / 65 (N-V) / 75 (XL) | 80 (F) / 65 (N-V) / 75 (XL) | 80 (F) / 65 (N-V) / 75 (XL) |

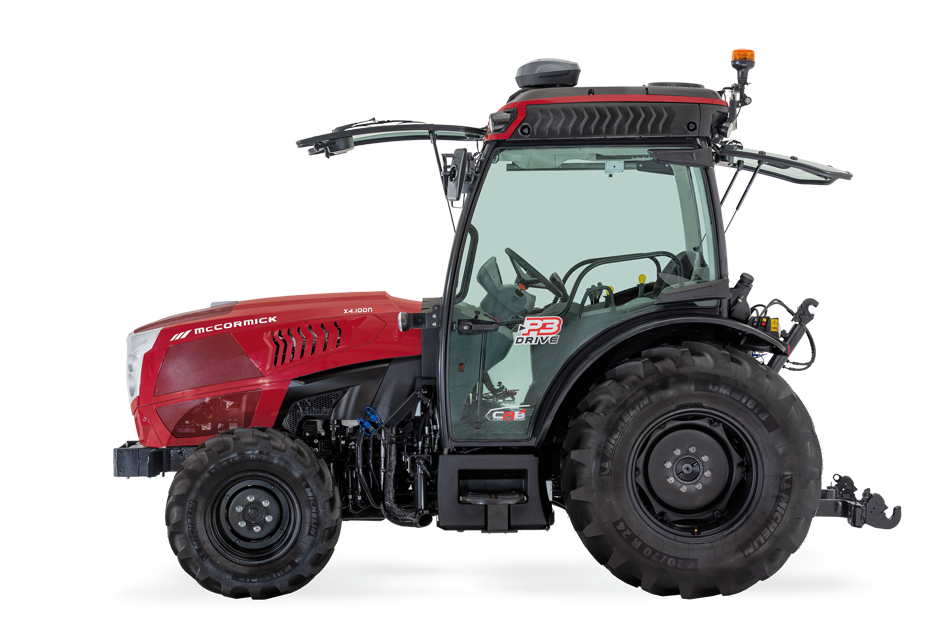

P3-Drive transmission
McCormick X4F comes in the configuration with P3-Drive 48AV+16RM transmission with electro-hydraulic reverse shuttle and fully robotised H-M-L speed and gear shifting under load, controlled by the new-generation multifunction joystick that accommodates all controls.
X4F is equipped with an open-centre hydraulic circuit
X4F is equipped with an open-centre hydraulic circuit, with a 30 l/min pump for steering and 58 l/min for utilities. A third, 36-l/min pump can also be added operating in tandem with the utility pump to achieve a total flow rate of 94 l/min, of which 55 l/min at as little as 1,500 engine rpm.
Dimensions & Weights
X4.080 F-N-V-XL | X4.090 F-N-V-XL | X4.100 F-N-V-XL | X4.110 F-N-V-XL | X4.120 F-N-V-XL | |
---|---|---|---|---|---|
Min-max overall width mm | 1355-1770 (F) / 1305-1775 (N) / 1000-1680 (V) / 1500-1945 (XL) | 1355-1770 (F) / 1305-1775 (N) / 1000-1680 (V) / 1500-1945 (XL) | 1355-1770 (F) / 1305-1775 (N) / 1000-1680 (V) / 1500-1945 (XL) | 1355-1770 (F) / 1305-1775 (N) / 1000-1680 (V) / 1500-1945 (XL) | 1355-1770 (F) / 1305-1775 (N) / 1000-1680 (V) / 1500-1945 (XL) |
Wheelbase mm | 2140 (F-N-XL) / 2190 (V) | 2140 (F-N-XL) / 2190 (V) | 2140 (F-N-XL) / 2190 (V) | 2140 (F-N-XL) / 2190 (V) | 2140 (F-N-XL) / 2190 (V) |
Min rear tires – Index Radius IR mm | 380/70R24 – 575 (F-N) / 360/70R20 – 500 (V) / 420/70R24 – 600 (XL) | 380/70R24 – 575 (F-N) / 360/70R20 – 500 (V) / 420/70R24 – 600 (XL) | 380/70R24 – 575 (F-N) / 360/70R20 – 500 (V) / 420/70R24 – 600 (XL) | 380/70R24 – 575 (F-N) / 360/70R20 – 500 (V) / 420/70R24 – 600 (XL) | 380/70R24 – 575 (F-N) / 360/70R20 – 500 (V) / 420/70R24 – 600 (XL) |
Max rear tires – Index Radius IR mm | 420/70R28 – 650 (F-N) / 360/70R28 – 600 (V) / 420/70R30-480/70R28 – 675 (XL) | 420/70R28 – 650 (F-N) / 360/70R28 – 600 (V) / 420/70R30-480/70R28 – 675 (XL) | 420/70R28 – 650 (F-N) / 360/70R28 – 600 (V) / 420/70R30-480/70R28 – 675 (XL) | 420/70R28 – 650 (F-N) / 360/70R28 – 600 (V) / 420/70R30-480/70R28 – 675 (XL) | 420/70R28 – 650 (F-N) / 360/70R28 – 600 (V) / 420/70R30-480/70R28 – 675 (XL) |
Shipping weight Kg | 2900 – 3250 (XL) | 2900 – 3250 (XL) | 2900 – 3250 (XL) | 2900 – 3250 (XL) | 2900 – 3250 (XL) |
Gross vehicle weight Kg | 5250 | 5250 | 5250 | 5250 | 5250 |
