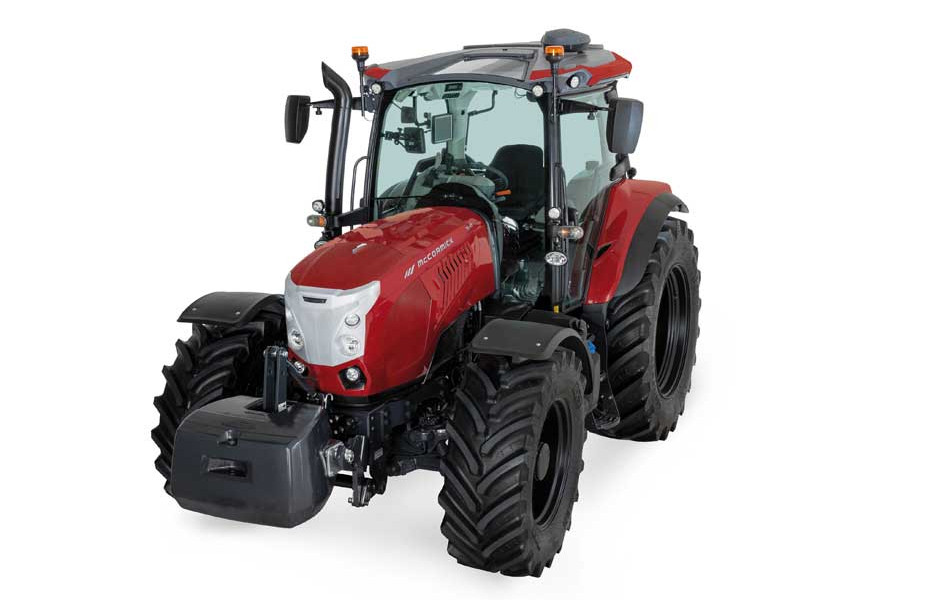

X6.4 P6-Drive Stage V
The main highlight at McCormick is the new X6.4 P6 Drive Stage V range, designed and built for those looking to find versatility, performance and comfort in a single tractor; an ideal and irreplaceable companion for open-field and multi-utility operations, hay harvesting, and operations that require a loader.
Versatility, performance and comfort in a single tractor
Engine | Power | Transmission |
---|---|---|
4,5/ 4 | 135 146 155 | P6-Drive |
Design, ergonomics, comfort and technology applied to improving working conditions are the other features that make X6.4 P6-Drive the ideal partner in the field and on your farm.

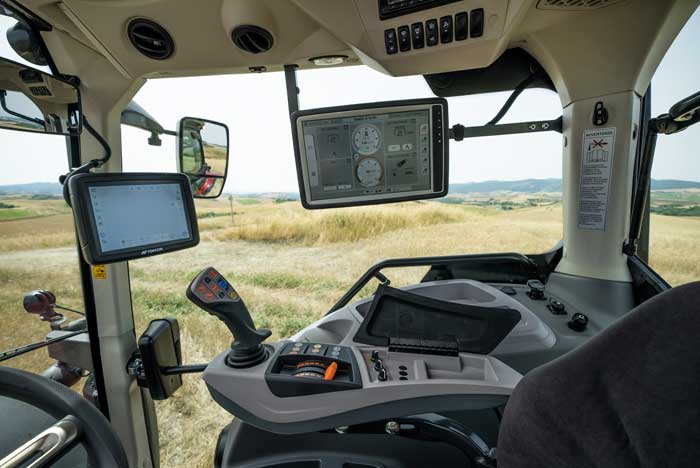

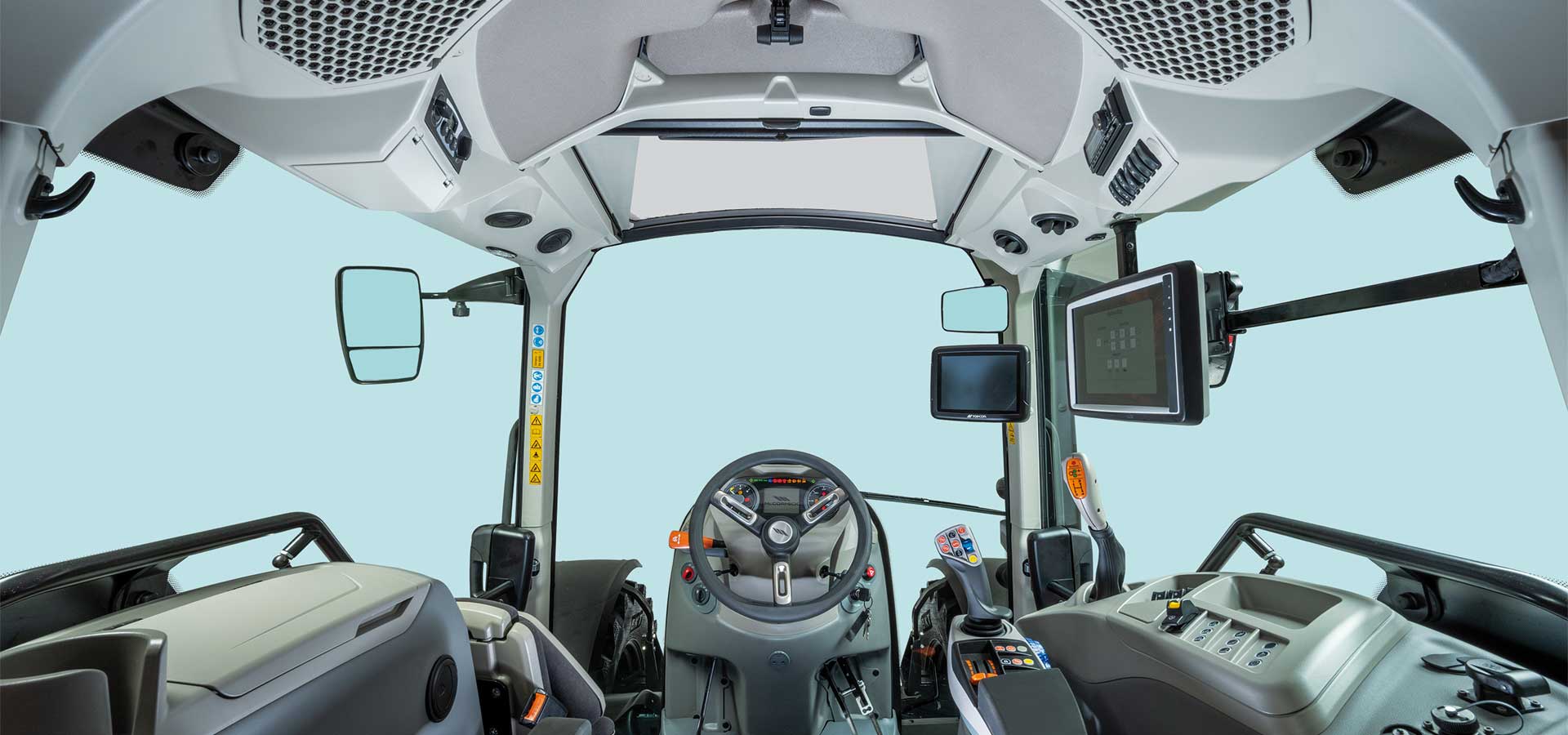

McCormick High Visibility cab
A distinctive feature of the McCormick High Visibility cab is its FOPS-homologated panoramic roof and the hatch for natural ventilation, which enhance the tractor’s performance when using the M40 front loader for bales handling. Also worth mentioning are the LED headlights. Up to 14 headlights are available, 8 of which are incorporated in the roof to provide excellent night vision. The cab sports a mechanical suspension that, combined with the suspended front axle with independent arms further improves driving comfort. The cab is designed with high quality automotive-derived materials. The same attention to design and functionality is found in the control instrumentation with its fully ergonomic design, a 12-inch touch screen monitor and all-in-one multifunction joystick.

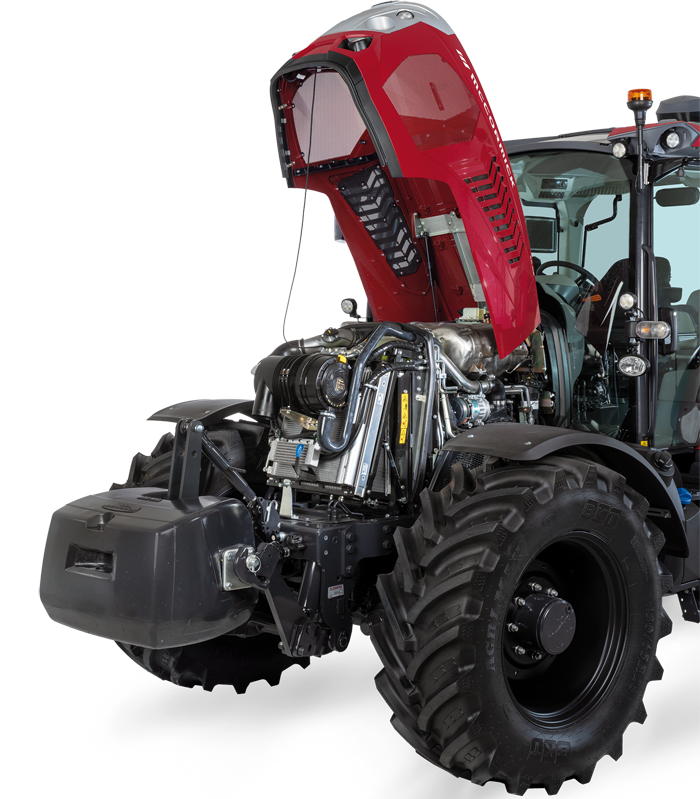

FPT NEF 45 engines
Stage V compliant, thanks to the exhaust gas post-treatment system, the range features three models X6.413, X6.414 and X6.415, powered by 4.5-litre, 16-valve, 4-cylinder FPT NEF 45 engines with a maximum power output of 155hp.
X6.413 P6-Drive | X6.414 P6-Drive | X6.415 P6-Drive | |
---|---|---|---|
Max power with EPM (ISO/TR 14396) hp / kW | 135/100 | 146/107 | 155/114 |
Engine speed at max power giri/min | 1800 | 1800 | 1800 |
Max torque without EPM (with EPM) at 1400 rpm Nm | 520 (551) | 551 (610) | 600 (630) |
Manufacturer | FPT | FPT | FPT |
Cylinders / Displacement / Valves cm3 | 4 / 4,5 l / 16 | 4 / 4,5 l / 16 | 4 / 4,5 l / 16 |
The P6-Drive transmission with 6 Power Shift gears and 4 ranges
The P6-Drive transmission with 6 Power Shift gears and 4 ranges offers 24 + 24 ratios, which rise to 40 + 40 when a creeper is fitted. Power output is enhanced by the 4-speed PTO.

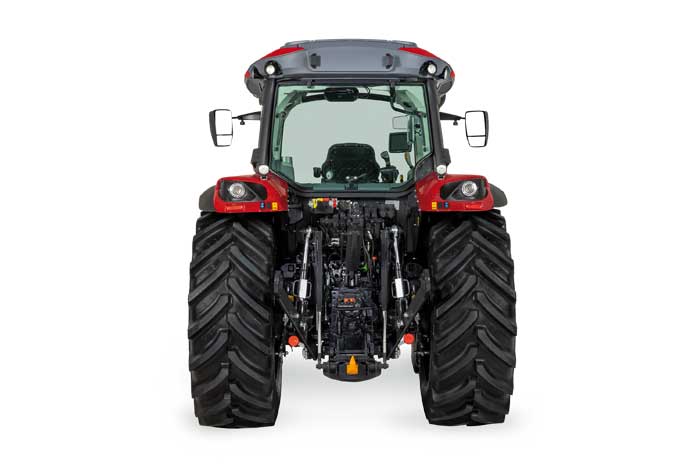

The closed-centre hydraulic system
The closed-centre hydraulic system features a 114 l/min pump capable of handling up to 7 spool valves.
Dimensions & Weights
X6.413 P6-Drive | X6.414 P6-Drive | X6.415 P6-Drive | |
---|---|---|---|
Wheelbase mm | 2560 | 2560 | 2560 |
Shipping weight – measured with average specs Kg | 5500 | 5500 | 5500 |
Gross vehicle weight Kg | 9500 | 9500 | 9500 |
Max front tyre size – (Index Radius – IR) mm | 520/60R28 (RI 650) | 520/60R28 (RI 650) | 520/60R28 (RI 650) |
Max rear tyre size – (Index Radius – IR) | 650/60R38 (RI 825) | 650/60R38 (RI 825) | 650/60R38 (RI 825) |
