New X7.6: technology and productivity

The new X7.6 series has been designed to meet the most demanding needs of modern farmers and contractors. Inspired by the automotive design, the new X7.6 tractor features more aggressive lines and a spacious cab with simple, ergonomicallyarranged controls for easy and convenient operation. The cab roof has been fully restyled and the 12 work lights have been repositioned to provide full all-round visibility for night-time operation. The hood has also been redesigned with a more streamlined, aggressive look that enhances visibility to the front.

Traction, manoeuvrability and comfort on all terrains

Engine Power Transmission
6,7/ 6 210 225 240 VT-Drive continuous variable transmission

With the engine located within a chassis and the rugged front axle with independent wheels, the X7.6 is the tractor that transfers more power to the ground in its class. The X7.6 offers outstanding traction and excellent manoeuvrability ensuring optimum grip and stability for superior driving comfort in the field and on the road. The front axle is equipped with full hydraulic locking differential and electro hydraulic four-wheel drive engagement ensuring maximum efficiency and safety on all terrains. High capacity wet multi-disc rear axle brakes ensure safe controlled stopping power. Also when braking, the fourwheel drive engages automatically, which in turn brakes the front axle for efficient braking on all four wheels. All X7.6 tractors are equipped with brake power boosting system to reduce the effort required by the operator while improving driving accuracy.

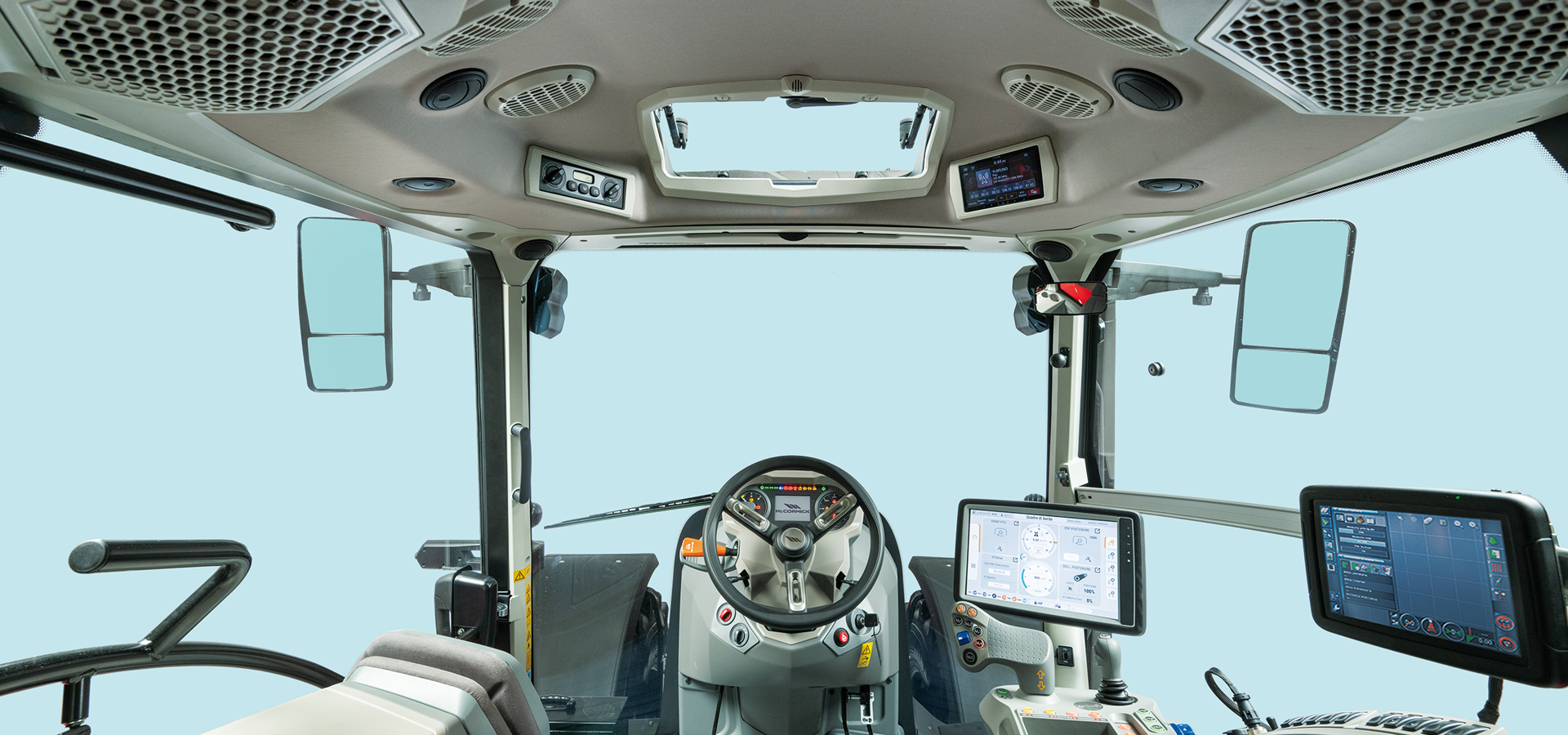

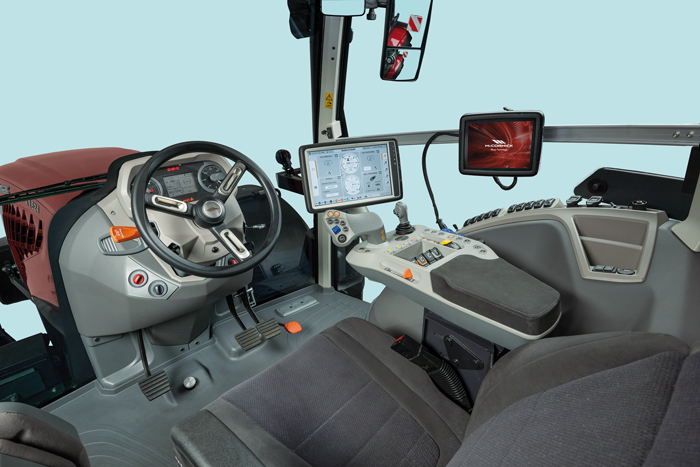

CLEVER CAB: your new office in first class

Our new Clever Cab welcomes you on board of McCormick high-power tractors. Beautiful, spacious, quiet and functional, the Clever Cab offers a working environment where every detail is cared for with the highest level of attention to give you unmatched performance.

With 14 percent more glass area, the new four-post cab of the X8 provides superb, unobstructed vision in all directions. The interior is more spacious than ever before and the controls are ergonomically designed according to anthropometric principles, servo assisted and user-friendly. The low round fenders further improve visibility to the sides of the vehicle. The 12-inch tablet-like touch screen monitor allows for simple and intuitive operation. Twenty adjustable full LED work lights provide full all-round visibility, while up to two relocatable rearview cameras allow the driver to monitor blind spots from the cab, making for improved safety and easy implement attachment.

The new Clever Cab offers more space for the operator. The clever four-post design has increased the glazed area by 14 per cent to allow full view of the implements and of the entire work area. Interior space has also been increased, particularly in the area around the chest and head of the driver, with 8 cm extra height. The seat travel has been extended by 12 cm towards the rear side. Storage areas are all built in to keep the working space uncluttered.

Wide, well-spaced steps, large doors and a fold-away buddy seat make access to the cab easy and safe. In addition, the daytime running lights integrated into the new headlamps and delayed light switch off ensure safe entry and exit at night.

To make the farmer’s work less tiring, McCormick has developed Cab Suspension, a new electrohydraulic semi-active cab suspension system which isolates the tractor body from wheel vibrations induced by uneven ground conditions. Cab Suspension increases tractor stability on all terrains, enhancing ride comfort

New Beta Power Fuel Efficiency: plenty of pulling power in the field

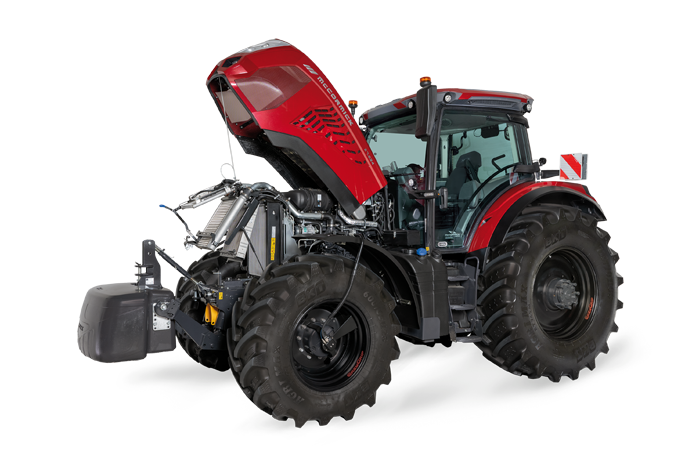

The X7.6 tractor range is powered by the new Beta Power Fuel Efficiency 6.7L six-cylinder turbo engines with multivalve technology and electronic common rail injection system. The engines are located within a rugged chassis which helps reduce noise and vibration levels within the cab. The engine cooling is ensured by an electronically-controlled viscotronic fan, which is standard on the entire range. This solution improves cooling efficiency while reducing fuel consumption and noise levels. The new Beta Power Fuel Efficiency powering the X7.6 series are cuttingedge engines designed to offer farmers simplicity and functionality without compromising on performance, reliability and durability. They feature the Power Plus system which electronically adjusts the engine power to respond to varying load conditions. During transport applications or PTO operations, the Power Plus automatically delivers additional 10 hp to handle tough conditions and heavy loads while maintaining speed and productivity. With the Power Plus the X7.6 tractors will deliver maximum powers of 210, 225 and 240 hp.

 X7.621 VT-Drive X7.623 VT-Drive X7.624 VT-Drive
MANUFACTURER – BRAND FPT – Beta Power Fuel Efficiency FPT – Beta Power Fuel Efficiency FPT – Beta Power Fuel Efficiency
RATED POWER WITH POWER PLUS (ISO/TR 14396) HP/kW 194/143 205/151 219/161
MAX. POWER WITH POWER PLUS (ISO/TR 14396)   HP/kW 210/155 225/166 240/176
MAX. TORQUE WITHOUT POWER PLUS (WITH POWER PLUS) – ENGINE SPEED AT 1400 rpm Nm 840 (860) 904 (921) 966 (983)
TORQUE BACKUP WITHOUT POWER PLUS (WITH POWER PLUS) 36%(41%) 36%(41%) 36%(41%)
NO. OF CYLINDERS / DISPLACEMENT/ NO . OF VALVES     cm3 6 / 6,7 / 24 6 / 6,7 / 24 6 / 6,7 / 24
ADBLUE TANK CAPACITY  L 52 52 52
FUEL TANK CAPACITY  L 350 350 350

VT-Drive, the continuous variable transmission

A powerful and versatile tractor range like the X7.6 must be able to handle all kinds of tasks and field conditions. The VT-Drive continuous variable transmission is designed to ensure all the versatility and flexibility required by modern agriculture. Combining a powerful engine with a VT-Drive four-stage continuous variable transmission featuring four planetary gear trains with oil-cooled clutches, the X7.6 ensures fast acceleration and excellent responsiveness making work easier and more efficient. The VT-Drive transmission offers four speed ranges with advance speeds from 40 m/h to 50 km/h for maximum productivity in any application. The McCormick VT-Drive transmission with its four-stage technology sets a new benchmark in continuous variable transmissions. Using a four-stage instead of usual two-stage CVT transmission offers real benefits to farmers and agricultural contractors who look for multi-purpose tractors capable of ensuring maximum productivity whatever the task or the field conditions. This transmission offers four speed ranges to suit different operating requirements:

– Range 1 Creeper: 0.5 – 3 km/h

– Range 2 Field 1: 0.5 – 12 km/h

– Range 3 Field 2: 0.5 – 21 km/h

– Range 4 Transport: 0.5 – 40 o 50 km/h

The VT-DRIVE transmission features four operating modes:

  1. Auto Mode – The electronic control unit controls the engine rpm and transmission ratio, based on parameters set on the potentiometer, in order to achieve the required speed.
  2. Manual Mode -The operator sets the engine speed using the hand throttle. The electronic unit controls the transmission ratio in order to achieve the required speed.
  3. PTO Mode – The operator sets the engine speed using the hand throttle. The electronic unit controls the transmission ratio in order to achieve the required speed, with priority on PTO speed.
  4. Cruise Mode – The operator selects the tractor travel speed which remains constant.

The X7.6 knows how to pump up your productivity

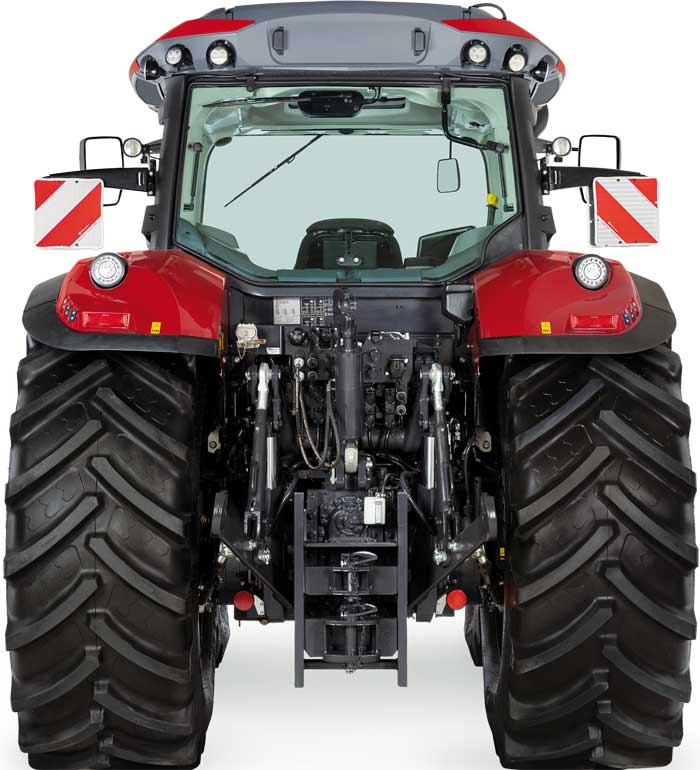

The X7.6 series tractors feature a closed-centre hydraulic system with variable-displacement pump. This means that the pump always delivers exactly the quantity of oil that the system requires, thereby eliminating unnecessary power waste. The system supplies up to 160 l/min to the hitch and remote valves, allowing for simultaneous operation of all hydraulic functions. The hydraulic system also includes a steering pump with 44 l/min flow rate. The X7.6 range has been designed to operate in a variety of conditions with heavy, power-demanding implements. The PTO offers four speeds: 1000, 1000Eco, 540 and 540Eco rpm and the driveline design ensures minimal power loss and therefore maximum productivity. An electro hydraulically operated clutch enables smooth and modulated engagement of the PTO, ensuring a soft start-up of the implement. The X7.6 series tractors are equipped with the Power Plus system, which automatically increases power available when the PTO is operational. This enables the engine to maintain a constant power as the load varies, allowing optimum use of the PTO for enhanced tractor performance and productivity. The rear hitch is equipped with lower link draft sensing for accurate implement control and provides a maximum lift capacity of 9300 kg.

Dimensions & Weights

X7.621 VT-Drive X7.623 VT-Drive X7.624 VT-Drive
MAX LENGTH WITH FRONT WEIGHTS – MAX TRACK WIDTH mm 5360 – 2550 measured with tires 600/60R30 – 710/60R42 5360 – 2550 measured with tires 600/60R30 – 710/60R42 5360 – 2550 measured with tires 600/60R30 – 710/60R42
SHIPPING WEIGHT – MEASURED WITH AVERAGE SPECIFICATIONS Kg 8300 8300 8300
GROSS VEHICLE WEIGHT Kg 13000 13000 13000
